BAT54CL - Dual Common Cathode Schottky Barrier Diodes

onsemi

General Description

Electronic versions are uncontrolled except when accessed directly from the Document Repository.

Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

23 (TO 236) 2.90x1.30x1.00 1.90P PAGE 1 OF 2 onsemi and are trademar

Key Features

Extremely Fast Switching Speed.
Low Forward Voltage.
0.35 V (Typ) @ IF = 10 mAdc.
S Prefix for Automotive and Other.

📥 Download Datasheet

BAT54CL dual common cathode schottky barrier diodes by onsemi - Datasheet Preview

Datasheet Details

Part number	BAT54CL
Manufacturer	onsemi
File Size	192.39 KB
Description	Dual Common Cathode Schottky Barrier Diodes
Datasheet	BAT54CL Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
BAT54CL	SCHOTTKY DIODE	AiT Semiconductor
BAT54C	SURFACE MOUNT SCHOTTKY BARRIER DIODE	WON-TOP
BAT54C	Schottky Diodes	Fairchild Semiconductor
BAT54C	DUAL SURFACE MOUNT SCHOTTKY	Rectron Semiconductor
BAT54C	Schottky barrier diodes	nexperia

Other Datasheets by onsemi

Part Number	Description
BAT54CLT1G	Dual Common Cathode Schottky Barrier Diodes
BAT54C	Schottky Diodes
BAT54CT	Dual Series Schottky Barrier Diodes
BAT54CW	Dual Series Schottky Barrier Diodes
BAT54CWT1G	Dual Series Schottky Barrier Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

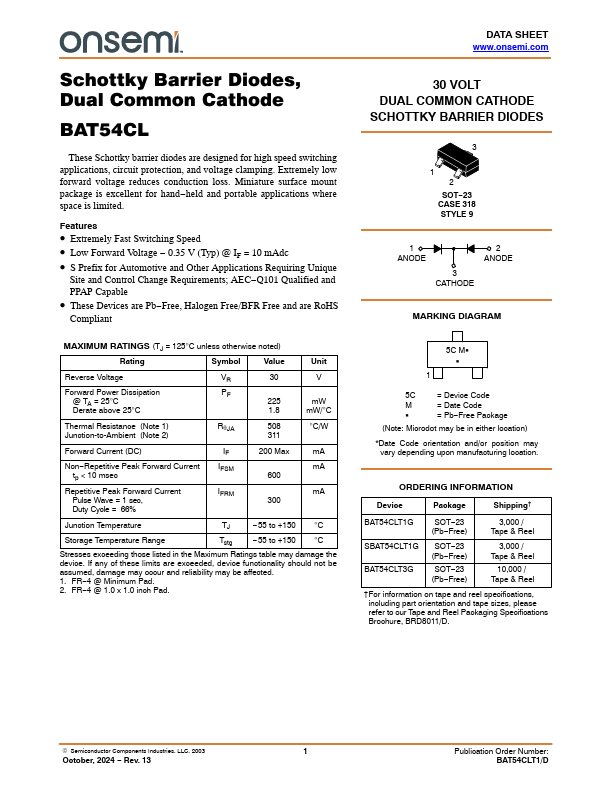

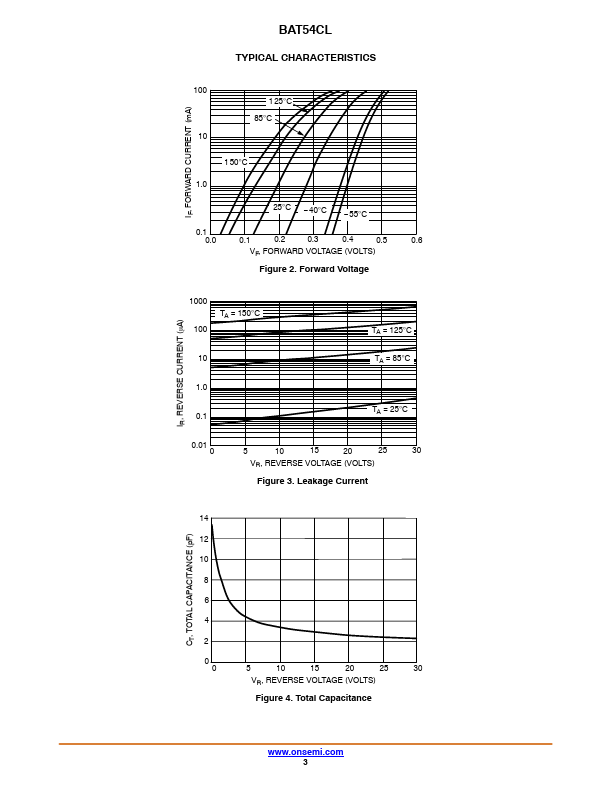

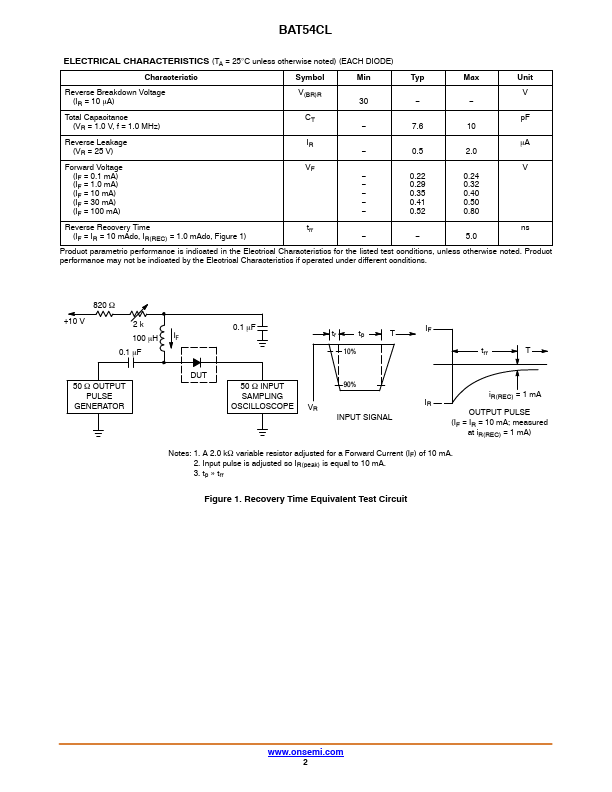

Schottky Barrier Diodes, Dual Common Cathode BAT54CL These Schottky barrier diodes are designed for high speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand−held and portable applications where space is limited. Features • Extremely Fast Switching Speed • Low Forward Voltage − 0.
