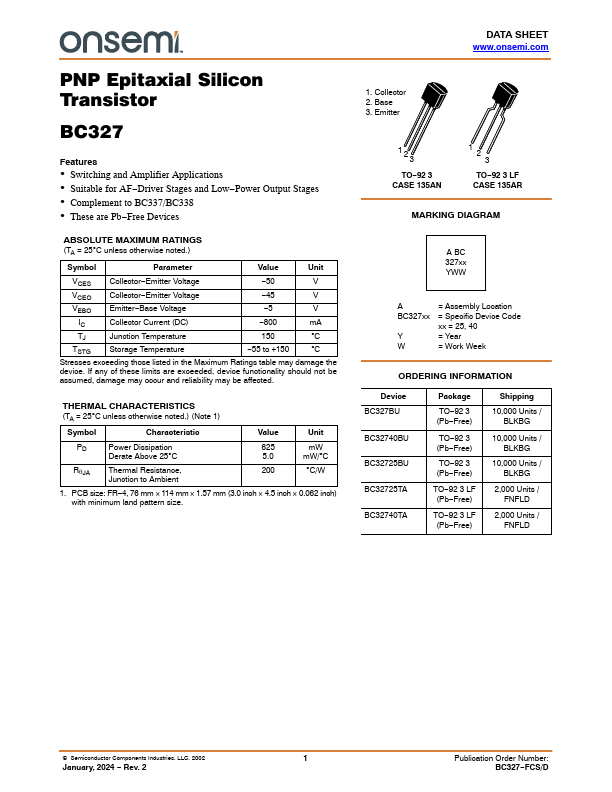

Datasheet Summary
BC327, BC327-16, BC327-25, BC327-40
Amplifier Transistors
PNP Silicon
Features
- These are Pb- Free Devices-
MAXIMUM RATINGS
Rating Collector
- Emitter Voltage Collector
- Emitter Voltage Emitter- Base Voltage Collector Current
- Continuous Total Power Dissipation @ TA = 25°C
Derate above TA = 25°C
Symbol VCEO VCES VEBO
IC PD
Value
- 45
- 50
- 5.0
- 800 625 5.0
Unit Vdc Vdc Vdc mAdc mW mW/°C
Total Power Dissipation @ TA = 25°C Derate above TA = 25°C
Operating and Storage Junction Temperature Range
PD TJ, Tstg
1.5 12
- 55 to +150
W mW/°C
°C
THERMAL CHARACTERISTICS
Characteristic
Symbol
Max...
