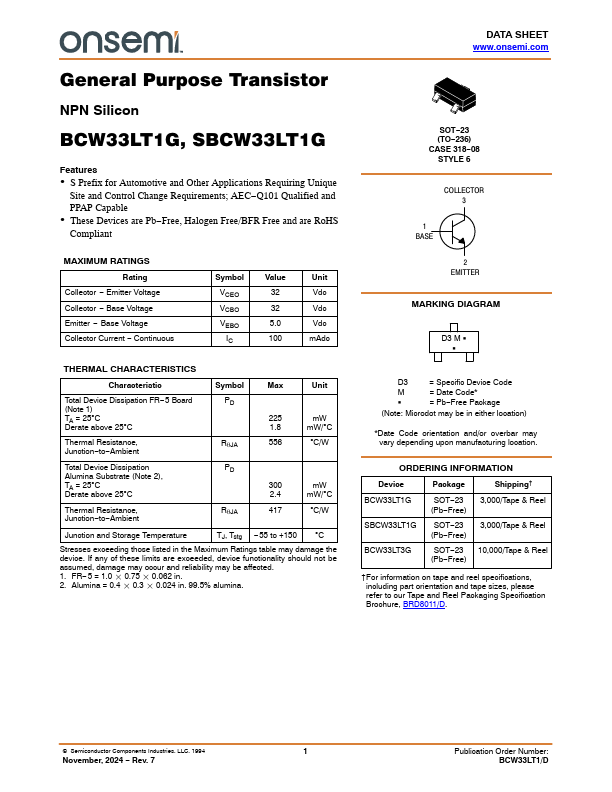

DATA SHEET .onsemi. General Purpose Transistor NPN Silicon BCW33LT1G, SBCW33LT1G Features - S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC- Q101 Qualified and PPAP Capable - These Devices are Pb- Free, Halogen Free/BFR Free and are RoHS pliant MAXIMUM RATINGS Rating Collector - Emitter Voltage Collector - Base Voltage Emitter - Base Voltage Collector Current - Continuous Symbol VCEO VCBO VEBO IC Value 32 32 5.0 100 Unit Vdc Vdc Vdc mAdc THERMAL CHARACTERISTICS Characteristic Symbol Max Unit Total Device Dissipation FR- 5 Board (Note 1) TA = 25C Derate above 25C 225 mW 1.8 mW/C Thermal Resistance,...
