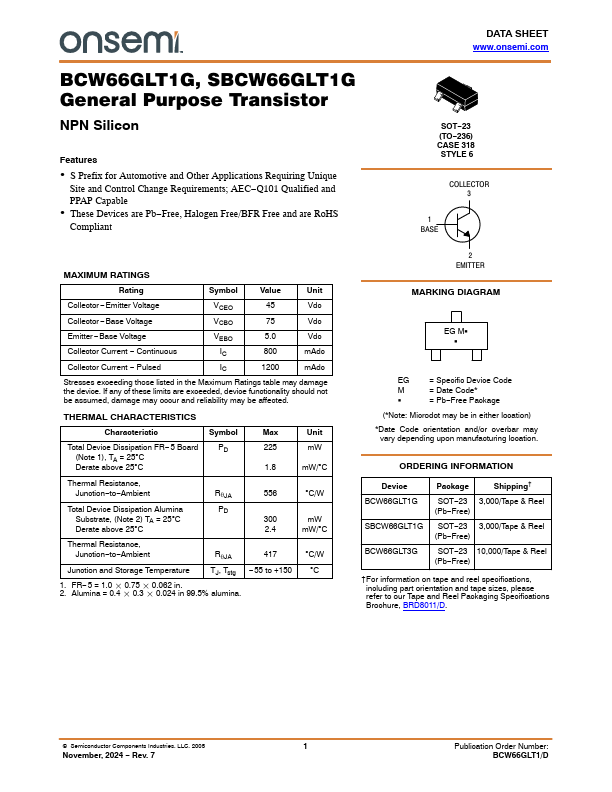

Datasheet Summary
DATA SHEET .onsemi.
BCW66GLT1G, SBCW66GLT1G General Purpose Transistor
NPN Silicon
Features
- S Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC- Q101 Qualified and PPAP Capable
- These Devices are Pb- Free, Halogen Free/BFR Free and are RoHS pliant
SOT- 23 (TO- 236) CASE 318 STYLE 6
COLLECTOR 3
1 BASE
MAXIMUM RATINGS
Rating
Symbol
Value
Unit
Collector
- Emitter Voltage
VCEO
Vdc
Collector
- Base Voltage
VCBO
Vdc
Emitter
- Base Voltage
VEBO
Vdc
Collector Current
- Continuous
800...
