BCX17LT1G
BCX17LT1G is PNP Transistor manufactured by onsemi.

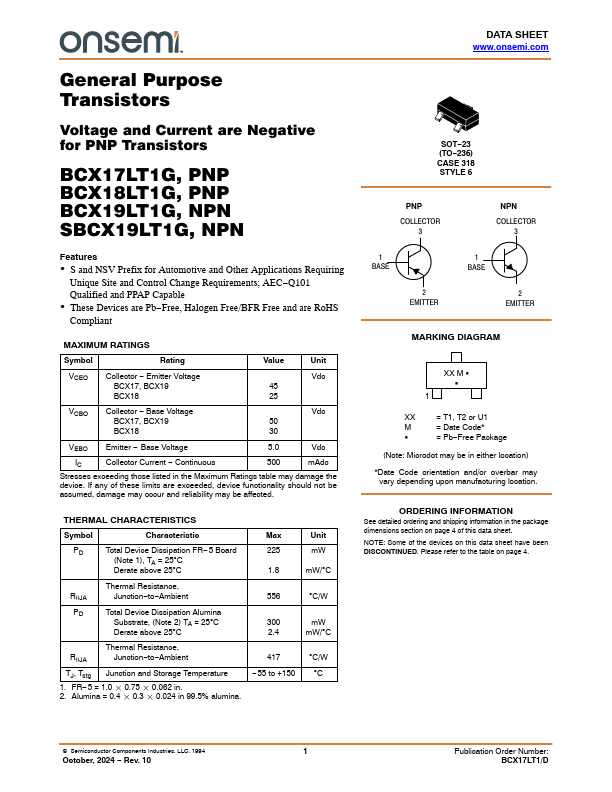

DATA SHEET .onsemi.
General Purpose Transistors
Voltage and Current are Negative for PNP Transistors
BCX17LT1G, PNP BCX18LT1G, PNP BCX19LT1G, NPN SBCX19LT1G, NPN
SOT- 23 (TO- 236) CASE 318 STYLE 6
COLLECTOR 3
COLLECTOR 3
Features
- S and NSV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC- Q101
Qualified and PPAP Capable
- These Devices are Pb- Free, Halogen Free/BFR Free and are RoHS pliant
MAXIMUM RATINGS
Symbol
Rating
Value
Unit
VCEO
Collector
- Emitter Voltage BCX17, BCX19 BCX18
Vdc 45 25
VCBO
Collector
- Base Voltage BCX17, BCX19 BCX18
Vdc 50 30
VEBO Emitter
- Base Voltage
Vdc
Collector...
