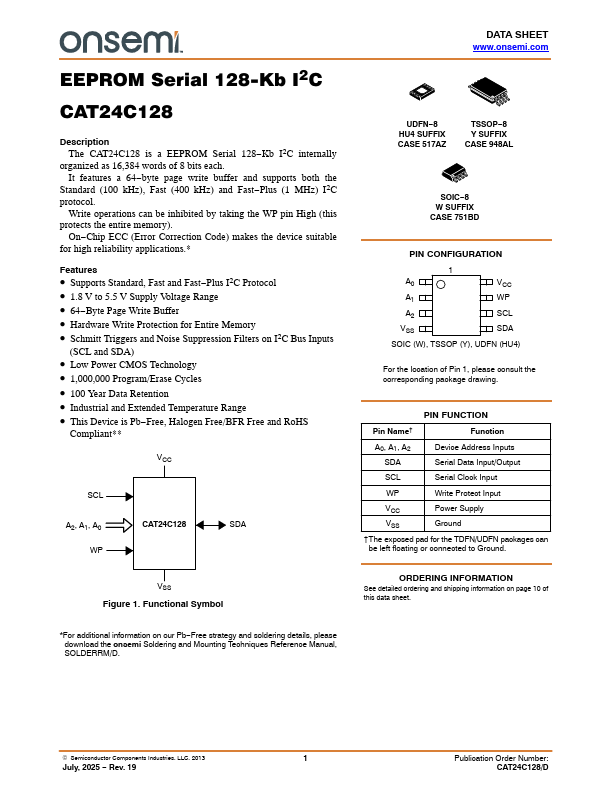

CAT24C128
CAT24C128 is 128kb I2C CMOS Serial EEPROM manufactured by onsemi.
EEPROM Serial 128-Kb I2C
Description The CAT24C128 is a EEPROM Serial 128- Kb I2C internally organized as 16,384 words of 8 bits each. It Features a 64- byte page write buffer and supports both the
Standard (100 k Hz), Fast (400 k Hz) and Fast- Plus (1 MHz) I2C protocol.
Write operations can be inhibited by taking the WP pin High (this protects the entire memory).
On- Chip ECC (Error Correction Code) makes the device suitable for high reliability applications.-
Features
- Supports Standard, Fast and Fast- Plus I2C Protocol
- 1.8 V to 5.5 V Supply Voltage Range
- 64- Byte Page Write Buffer
- Hardware Write Protection for Entire Memory
- Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs
(SCL and SDA)
- Low Power CMOS Technology
- 1,000,000 Program/Erase Cycles
- 100 Year Data Retention
- Industrial and Extended Temperature Range
- This Device is Pb- Free, Halogen Free/BFR Free and Ro HS pliant-
- VCC
SCL A2, A1, A0
VSS Figure 1. Functional Symbol
- For additional information on our Pb- Free strategy and soldering details, please download the onsemi Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.
DATA SHEET .onsemi.
UDFN- 8 HU4 SUFFIX CASE 517AZ
TSSOP- 8 Y SUFFIX CASE 948AL
SOIC- 8 W SUFFIX CASE 751BD
PIN CONFIGURATION
1 A0
A1
A2
SOIC (W), TSSOP (Y), UDFN...
