CAT25320 - 32-Kb SPI Serial EEPROM

Product Overview

ON Semiconductor

Part number	CAT25320
Manufacturer	ON Semiconductor
File Size	288.81 KB
Description	32-Kb SPI Serial EEPROM
Datasheet	CAT25320 Datasheet

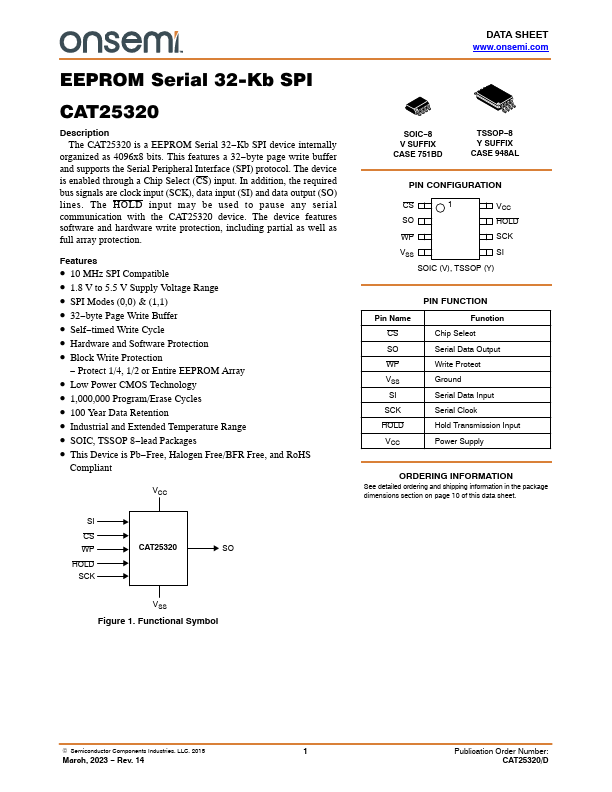

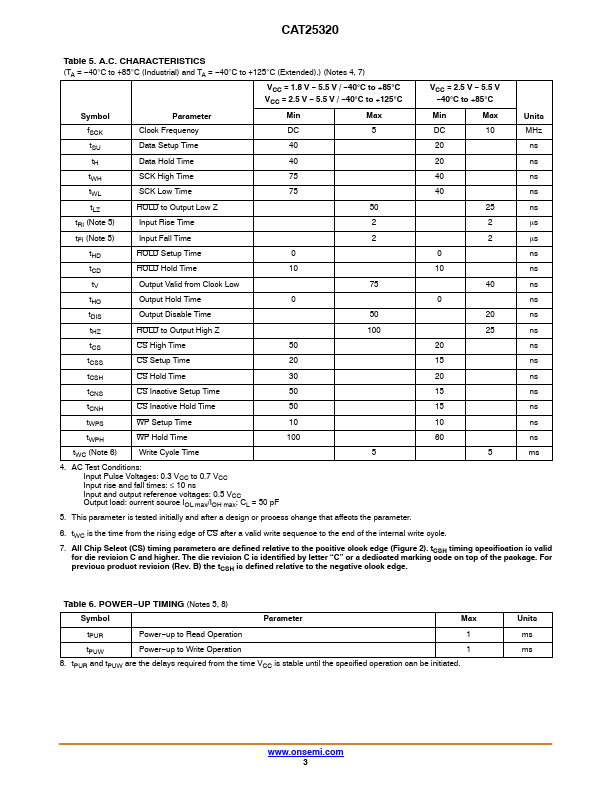

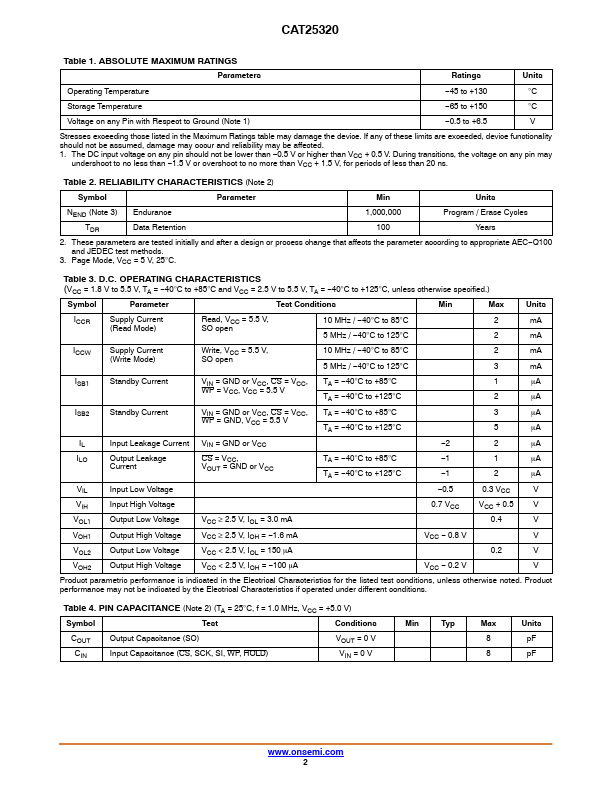

Additional preview pages of the CAT25320 datasheet.

The CAT25320 is a EEPROM Serial 32 Kb SPI device internally organized as 4096x8 bits.This

a 32.
byte page write buffer and supports the Serial Peripheral Interface (SPI) protocol. The device is enabled through a Chip Select (CS) input. In addition, the required bus signals are clock input (SCK), data input (SI) and data output (SO) lines. The HOLD input may be used to pause any serial communication with the CAT25320 device. The device features software and hardware write protection, including partial as well as full array protection. Features.
10 MHz SPI Compatible.
