DTA123JM3
DTA123JM3 is Digital Transistors manufactured by onsemi.
- Part of the DTA123JE comparator family.
- Part of the DTA123JE comparator family.

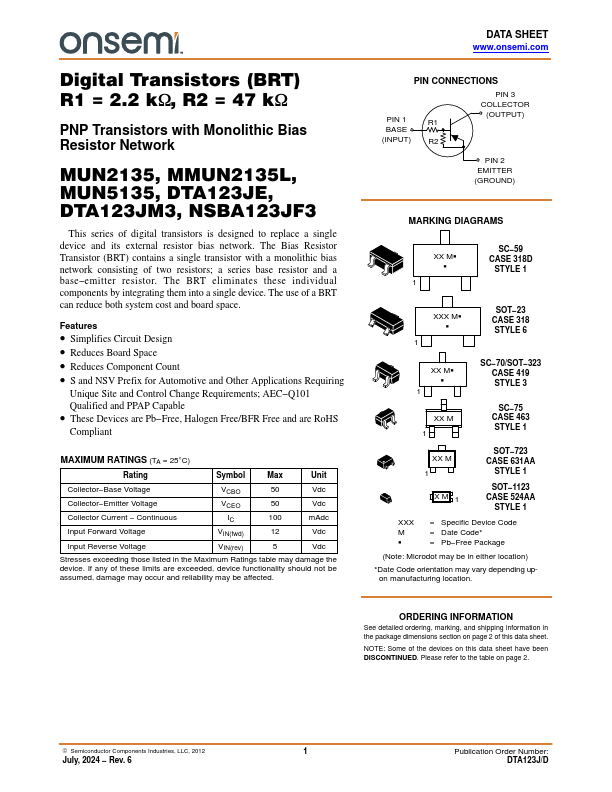

Digital Transistors (BRT) R1 = 2.2 kW, R2 = 47 kW
PNP Transistors with Monolithic Bias Resistor Network
MUN2135, MMUN2135L, MUN5135, DTA123JE, DTA123JM3, NSBA123JF3
This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base- emitter resistor. The BRT eliminates these individual ponents by integrating them into a single device. The use of a BRT can reduce both system cost and board space.
Features
- Simplifies Circuit Design
- Reduces Board Space
- Reduces ponent Count
- S...
