ESD8008 - ESD Protection Diodes

onsemi

General Description

of survivability specs.

Rev.

Key Features

Integrated 4 Pairs (8 Lines) High Speed Data.
Single Connect, Flow through Routing.
Low Capacitance (0.35 pF Max, I/O to GND).
Protection for the Following IEC Standards: IEC 61000.
4.
2 Level 4 (ESD) ±15 kV (Contact) IEC 61000.
4.
5 (Lightning) 5 A (8/20 ms).
UL Flammability Rating of 94 V.
SZ Prefix for Automotive and Other.

📥 Download Datasheet

ESD8008 esd protection diodes by onsemi - Datasheet Preview

Datasheet Details

Part number	ESD8008
Manufacturer	onsemi
File Size	190.60 KB
Description	ESD Protection Diodes
Datasheet	ESD8008 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
ESD8-DFN	LOW CAPACITANCE TVS ARRAY	Protek Devices
ESD8472MUT5G	Ultra Low Capacitance Bi-directional TVS Diode	Leiditech
ESD8D5.0	Protect voltage sensitive components	MSV
ESD8D5.0CN3	Protect voltage sensitive components	MSV
ESD8LS5.0C	ESD PROTECTION DIODE	AiT Semiconductor

Other Datasheets by onsemi

Part Number	Description
ESD8004	ESD Protection Diode
ESD8006	ESD Protection Diode
ESD8011	ESD Protection Diode
ESD8016	ESD Protection Diode
ESD8018	ESD Protection Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

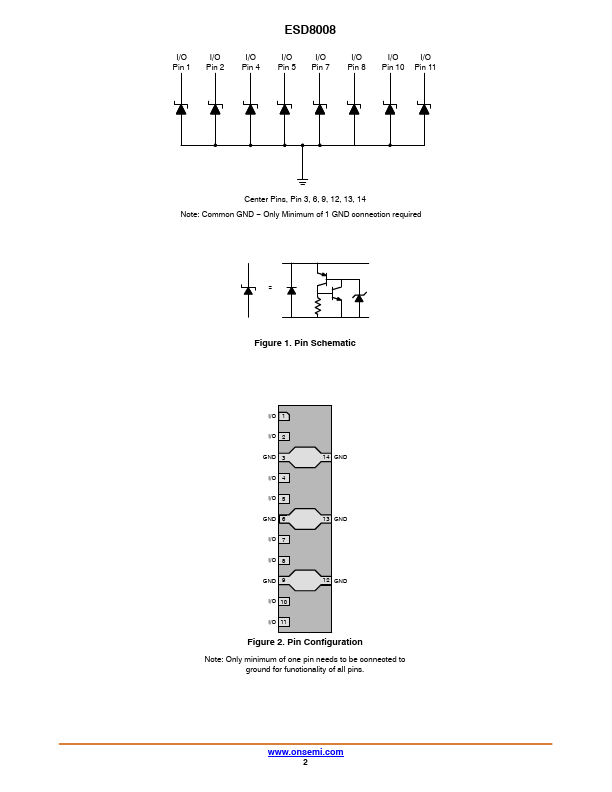

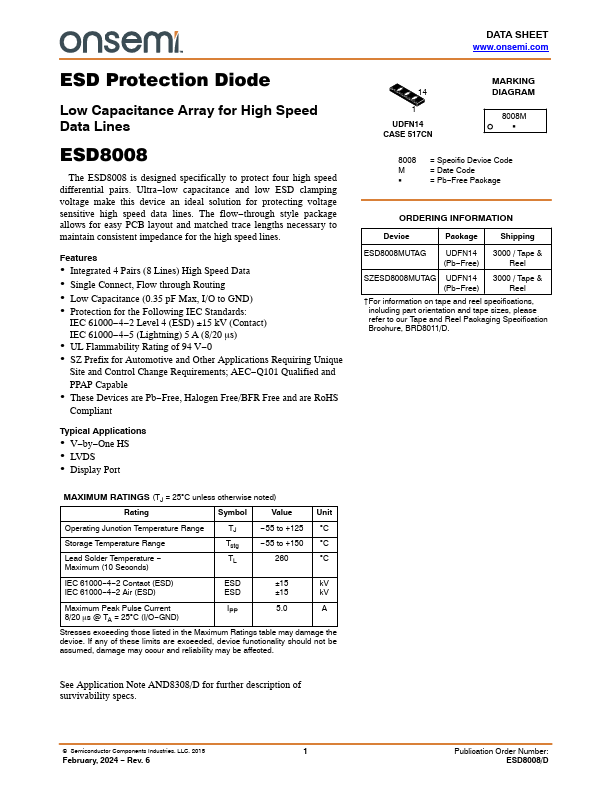

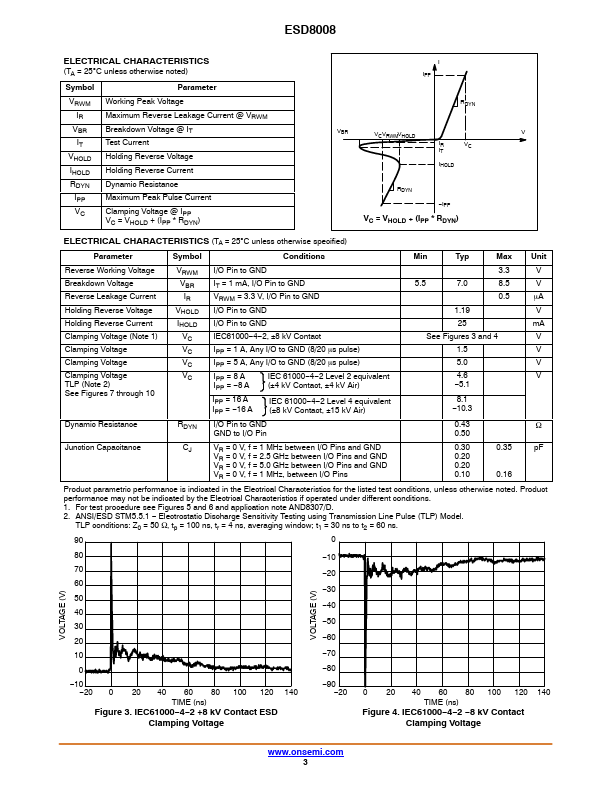

ESD8008 ESD Protection Diode Low Capacitance Array for High Speed Data Lines The ESD8008 is designed specifically to protect four high speed differential pairs. Ultra−low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. The flow−through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance for the high speed lines. Features • Integrated 4 Pairs (8 Lines) High Speed Data • Single Connect, Flow through Routing • Low Capacitance (0.
