FAN4174 - CMOS Amplifier

This page provides the datasheet information for the FAN4174, a member of the FAN4274 CMOS Amplifier family.

Datasheet Summary

Description

The FAN4174 (single) and FAN4274 (dual) are voltage feedback amplifiers with CMOS inputs that consume only 200 mA of supply current per amplifier, while providing ±33 mA of output short

circuit current.

These amplifiers are designed to operate 5 V supplies.

Features

200 mA Supply Current per Amplifier.
3.7 MHz Bandwidth.
Output Swing to Within 10 mV of Either Rail.
Input Voltage Range Exceeds the Rails.
3 V/ms Slew Rate.
25 nV/√Hz Input Voltage Noise.
Replaces KM4170 and KM4270.
FAN4174 Competes with OPA340 and TLV2461; Available in a SOT23.
5 Package.
FAN4274 Competes with OPA2340 and TLV2462; Available in MSOP.
8 Package.
Fully Specified at +5 V Suppli.

Datasheet Details

Part number	FAN4174
Manufacturer	ON Semiconductor
File Size	1.04 MB
Description	CMOS Amplifier
Datasheet	FAN4174 Datasheet

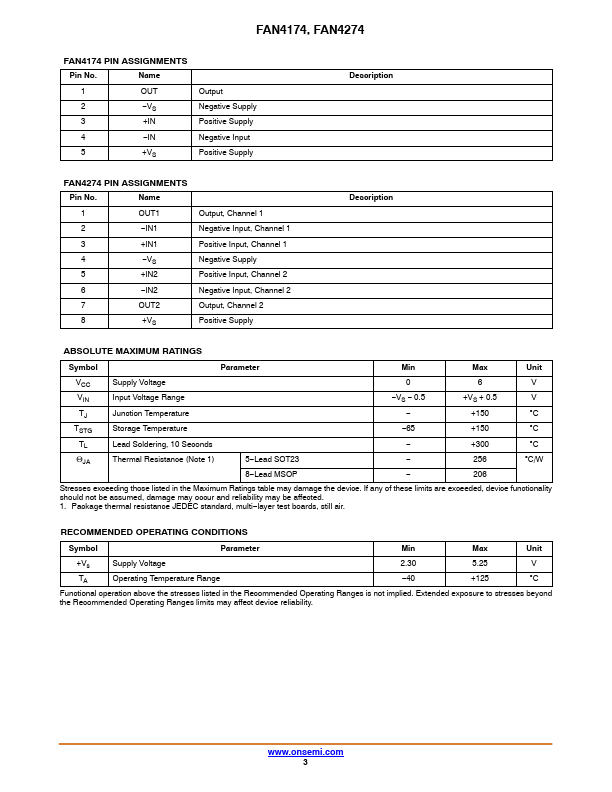

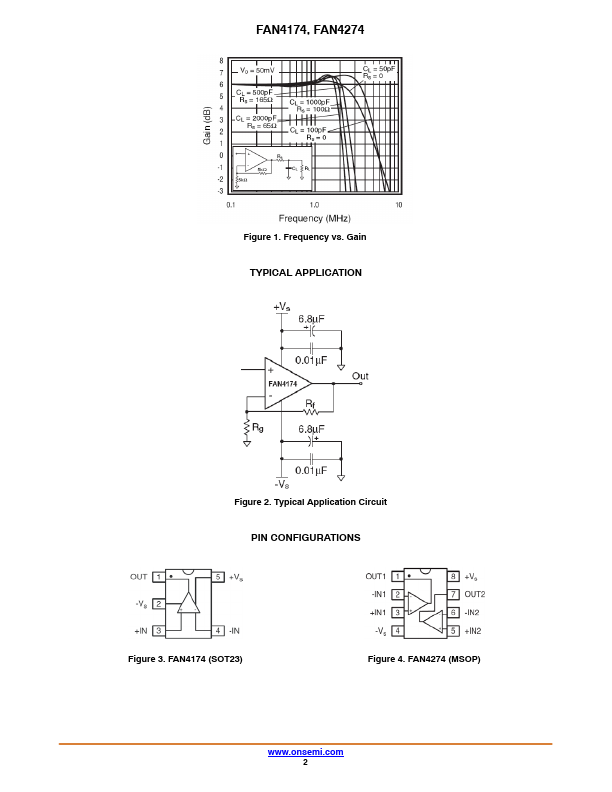

Additional preview pages of the FAN4174 datasheet.

📁 Similar Datasheet

FAN4174 - CMOS Amplifier (Fairchild Semiconductor)

FAN4113 - 1.2V/ 36MHz/ Low Power Rail-to-Rail Amplifier (Fairchild Semiconductor)

FAN4147 - Ground Fault Interrupter (Fairchild Semiconductor)

FAN4149 - Ground Fault Interrupter (Fairchild Semiconductor)

FAN41501 - Ground Fault Interrupter Self-Test Digital Controller (Fairchild Semiconductor)

FAN400A - Low-Power Green-Mode PWM Flyback Power Controller (Fairchild Semiconductor)

FAN400C - PWM Flyback Power Controller (Fairchild Semiconductor)

FAN4010 - High-Side Current Sensor (Fairchild Semiconductor)

FAN4040 - Precision Micropower Shunt Voltage Reference (Fairchild Semiconductor)

FAN4041 - Precision Micropower Shunt Voltage Reference (Fairchild Semiconductor)

Full PDF Text Transcription

Click to expand full text

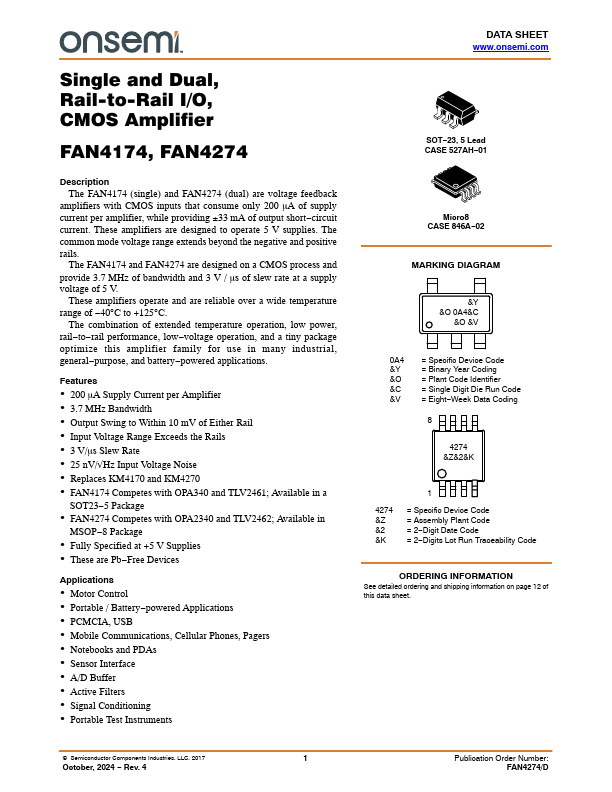

Single and Dual, Rail-to-Rail I/O, CMOS Amplifier FAN4174, FAN4274 Description The FAN4174 (single) and FAN4274 (dual) are voltage feedback amplifiers with CMOS inputs that consume only 200 mA of supply current per amplifier, while providing ±33 mA of output short−circuit current. These amplifiers are designed to operate 5 V supplies. The common mode voltage range extends beyond the negative and positive rails. The FAN4174 and FAN4274 are designed on a CMOS process and provide 3.7 MHz of bandwidth and 3 V / ms of slew rate at a supply voltage of 5 V. These amplifiers operate and are reliable over a wide temperature range of −40°C to +125°C.
