FAN4274 - CMOS Amplifier

Product Overview

ON Semiconductor

Datasheet Details

Part number	FAN4274
Manufacturer	ON Semiconductor
File Size	1.04 MB
Description	CMOS Amplifier
Datasheet	FAN4274 Datasheet

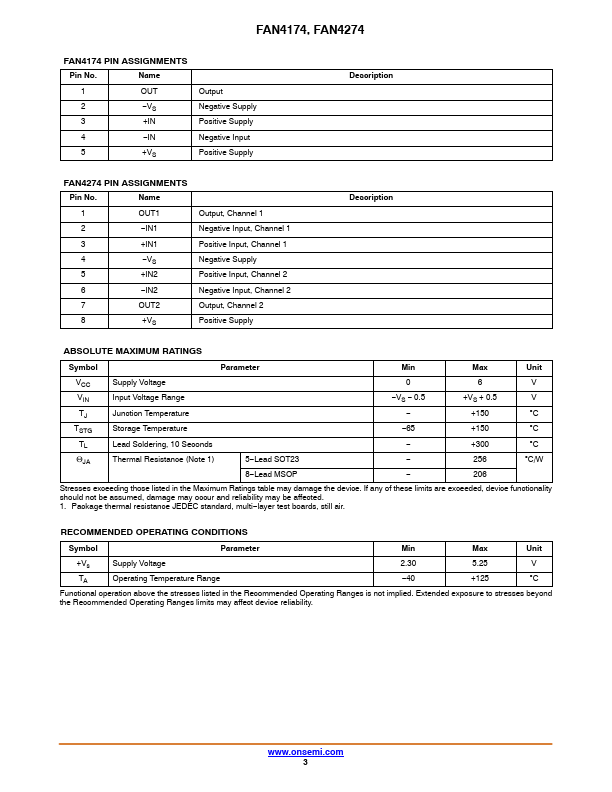

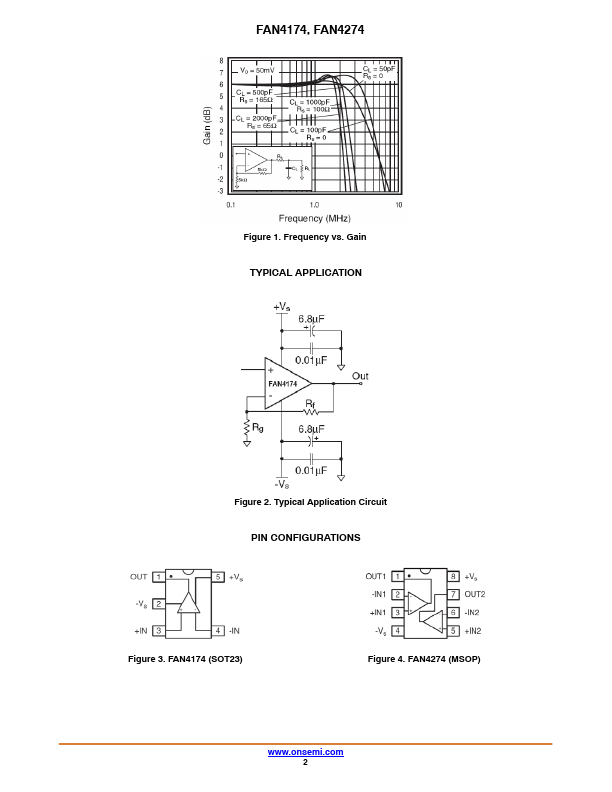

Additional preview pages of the FAN4274 datasheet.

Product details

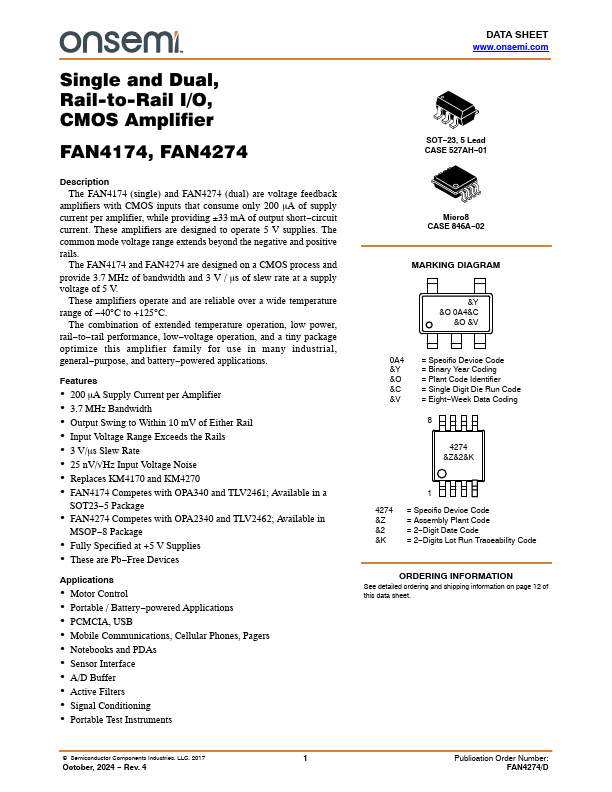

Description

The FAN4174 (single) and FAN4274 (dual) are voltage feedback amplifiers with CMOS inputs that consume only 200 mA of supply current per amplifier, while providing ±33 mA of output short

circuit current.

These amplifiers are designed to operate 5 V supplies.

Features

200 mA Supply Current per Amplifier.
3.7 MHz Bandwidth.
Output Swing to Within 10 mV of Either Rail.
Input Voltage Range Exceeds the Rails.
3 V/ms Slew Rate.
25 nV/√Hz Input Voltage Noise.
Replaces KM4170 and KM4270.
FAN4174 Competes with OPA340 and TLV2461; Available in a SOT23.
5 Package.
FAN4274 Competes with OPA2340 and TLV2462; Available in MSOP.
8 Package.
Fully Specified at +5 V Suppli.
