FQPF27P06 - P-Channel MOSFET

General Description

This P

using ON Semiconductor’s proprietary planar stripe and DMOS technology.

state resistance, and to provide superior switching performance and high avalanch

Key Features

  • 17 A,.
  • 60 V, RDS(on) = 70 mW (Max. ) @ VGS =.
  • 10 V, ID =.
  • 8.5 A.
  • Low Gate Charge (Typ. 33 nC).
  • Low Crss (Typ. 120 pF).
  • 100% Avalanche Tested.
  • 175°C Maximum Junction Temperature Rating www. onsemi. com VDSS.
  • 60 V RDS(ON) MAX 70 mW @ 10 V S ID MAX.
  • 17 A G D P.
  • Channel MOSFET GD S TO.
  • 220F TO.
  • 220 Fullpack, 3.
  • Lead / TO.
  • 220F.
  • 3SG CASE 221AT.

📥 Download Datasheet

Datasheet Details

Part number FQPF27P06
Manufacturer onsemi
File Size 322.13 KB
Description P-Channel MOSFET
Datasheet download datasheet FQPF27P06 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FQPF27P06 60V P-Channel MOSFET Fairchild Semiconductor
FQPF27N25 250V N-Channel MOSFET Fairchild Semiconductor
FQPF20N06 60V N-Channel MOSFET Fairchild Semiconductor
FQPF20N06L 60V LOGIC N-Channel MOSFET Fairchild Semiconductor
FQPF20N60 20A N-Channel MOSFET Oucan Semi

Other Datasheets by onsemi

Part Number Description
FQPF13N50C N-Channel MOSFET
FQPF3N50C 500V N-Channel MOSFET
FQPF47P06 P-Channel MOSFET
FQPF47P06YDTU P-Channel MOSFET
FQPF7P20 P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

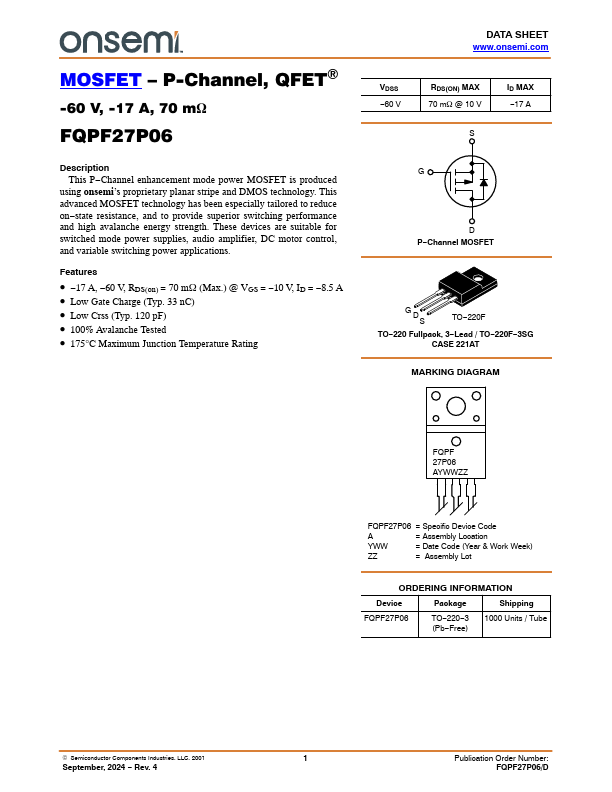

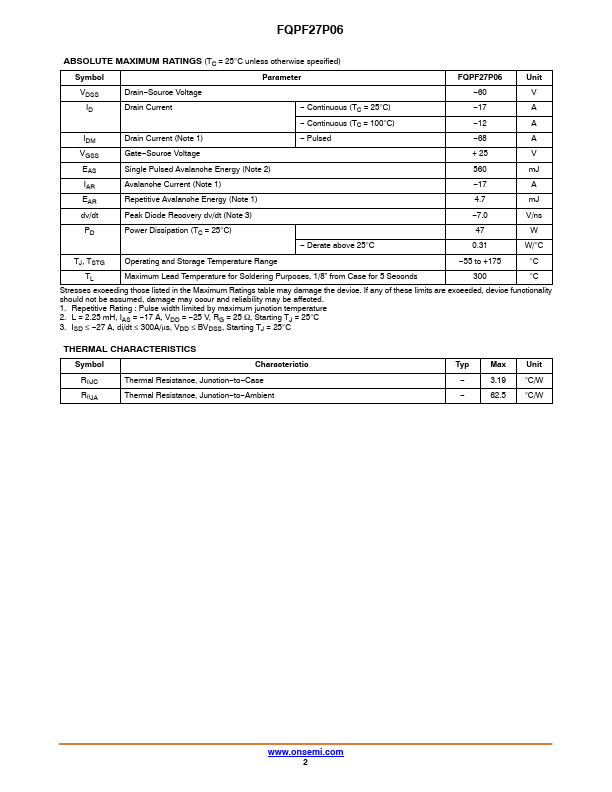

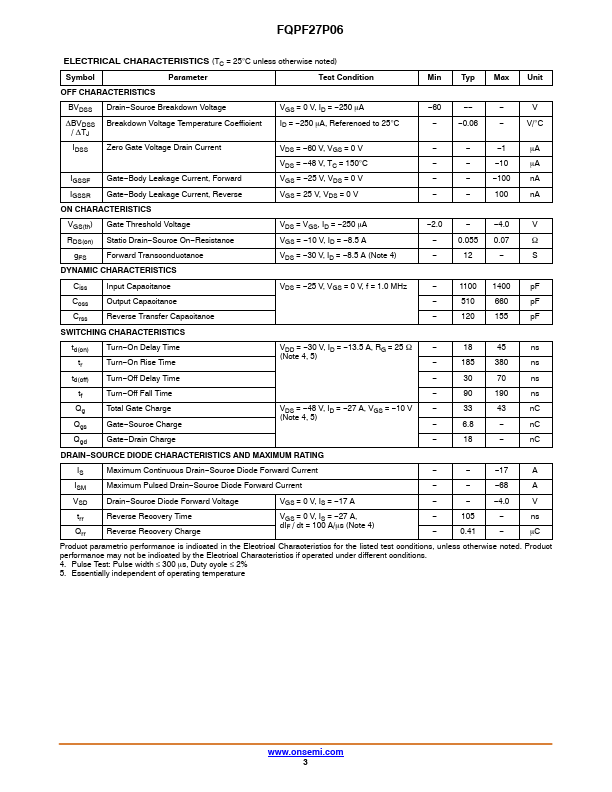

MOSFET – P-Channel, QFET) -60 V, -17 A, 70 mW FQPF27P06 Description This P−Channel enhancement mode power MOSFET is produced using ON Semiconductor’s proprietary planar stripe and DMOS technology. This advanced MOSFET technology has been especially tailored to reduce on−state resistance, and to provide superior switching performance and high avalanche energy strength. These devices are suitable for switched mode power supplies, audio amplifier, DC motor control, and variable switching power applications. Features • −17 A, −60 V, RDS(on) = 70 mW (Max.) @ VGS = −10 V, ID = −8.5 A • Low Gate Charge (Typ. 33 nC) • Low Crss (Typ. 120 pF) • 100% Avalanche Tested • 175°C Maximum Junction Temperature Rating www.onsemi.
