HCPL2530M - 8-Pin DIP High Speed Transistor Optocoupler

Product Overview

ON Semiconductor

Part number	HCPL2530M
Manufacturer	ON Semiconductor
File Size	517.69 KB
Description	8-Pin DIP High Speed Transistor Optocoupler
Datasheet	HCPL2530M Datasheet
Note	This datasheet PDF includes multiple part numbers: HCPL2530M, HCPL4503M. Please refer to the document for exact specifications by model.

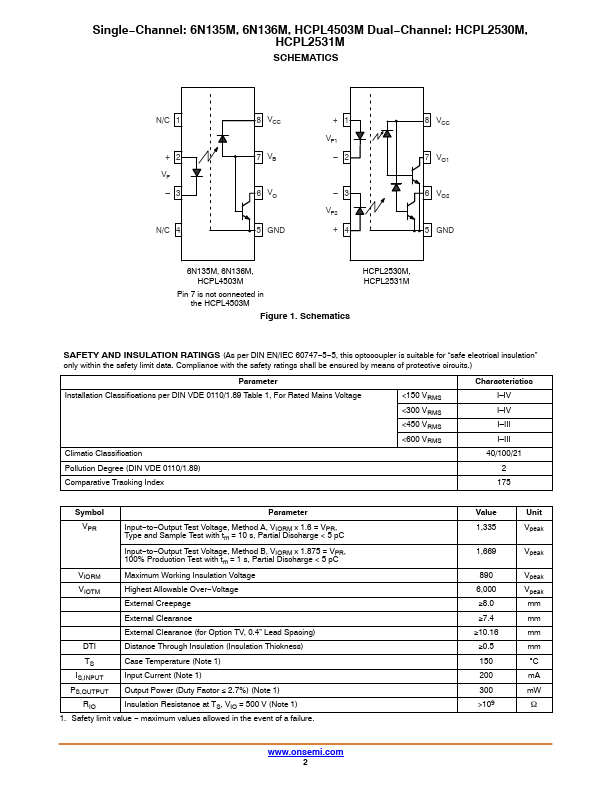

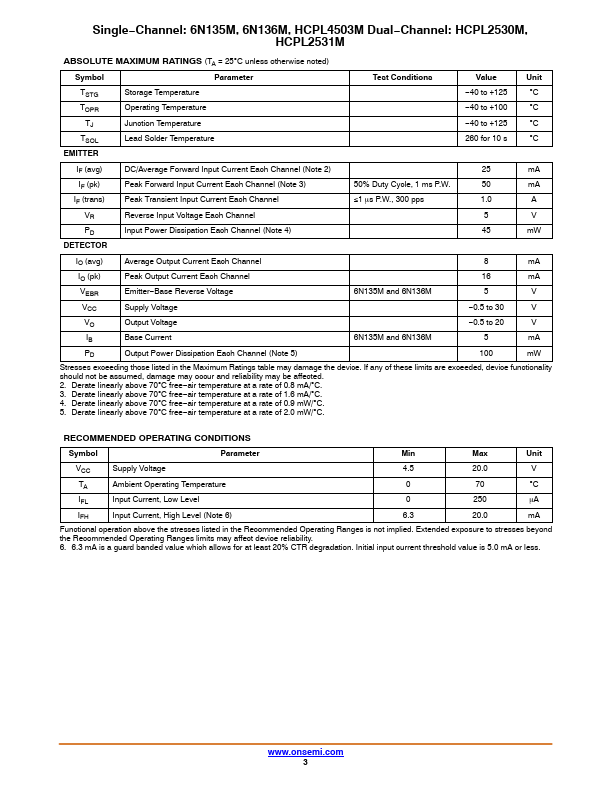

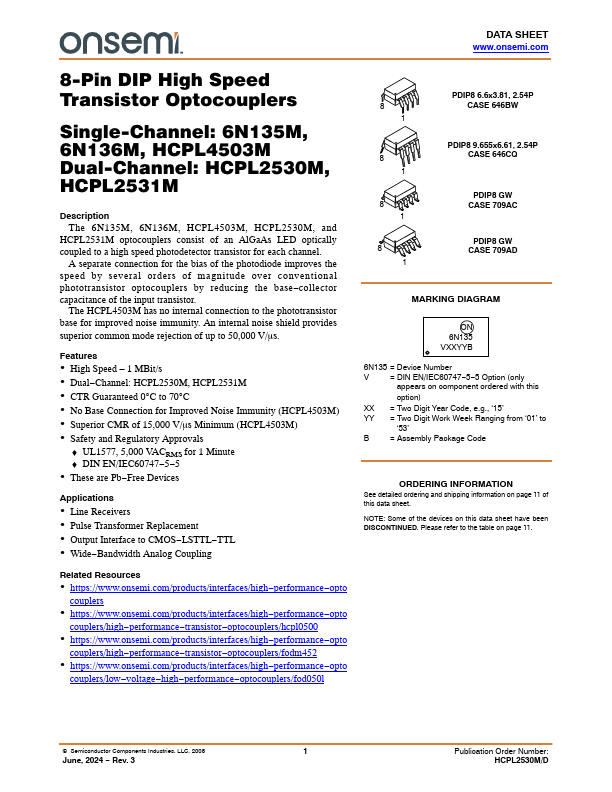

Additional preview pages of the HCPL2530M datasheet.

HCPL2531M optocouplers consist of an AlGaAs LED optically coupled to a high speed photodetector transistor for each channel.
