HCPL2601 - Logic Gate Optocoupler

General Description

The 6N137, HCPL2601, HCPL2611 single channel and HCPL2630, HCPL2631 dual channel optocouplers consist of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photo

detector logic gate with a strobable output.

Key Features

  • an open collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over the temperature range of.
  • 40°C to +85°C. A maximum input signal of 5 mA will provide a minimum output sink current of 13 mA (fan out of 8). An internal noise shield provides superior common mode rejection of typically 10 kV/ms. The HCPL2601 and HCPL2631 has a minimum CMR of 5 kV/ms. The HCPL2611 has a minimum CMR of 10 kV/ms. Features.
  • Very High Speed.
  • 10 MBit/s.

📥 Download Datasheet

Datasheet Details

Part number HCPL2601
Manufacturer onsemi
File Size 453.24 KB
Description Logic Gate Optocoupler
Datasheet download datasheet HCPL2601 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HCPL2601 High Speed 10MBit/s Logic Gate Optocouplers Fairchild Semiconductor
HCPL2601M Single-Channel High-Speed 10 MBit/s Logic Gate Optocouplers Fairchild Semiconductor
HCPL2611 High Speed 10MBit/s Logic Gate Optocouplers Fairchild Semiconductor
HCPL2611M Single-Channel High-Speed 10 MBit/s Logic Gate Optocouplers Fairchild Semiconductor
HCPL2630 Dual-Channel High Speed 10MBit/s Logic Gate Optocouplers Fairchild Semiconductor

Other Datasheets by onsemi

Part Number Description
HCPL2611 Logic Gate Optocoupler
HCPL2630 Logic Gate Optocoupler
HCPL2631 Logic Gate Optocoupler
HCPL2530M Dual-Channel 8-Pin DIP High Speed Transistor Optocoupler
HCPL2531M Dual-Channel 8-Pin DIP High Speed Transistor Optocoupler

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

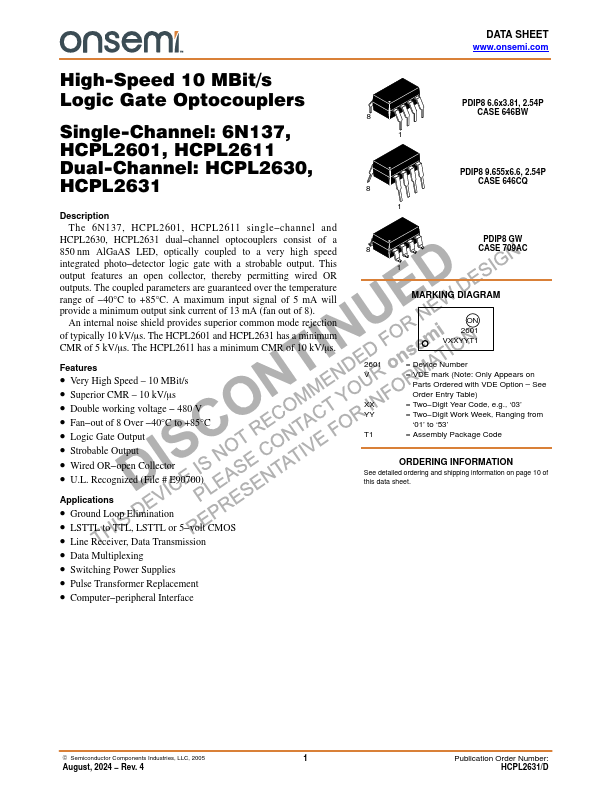

High-Speed 10 MBit/s Logic Gate Optocouplers Single-Channel: 6N137, HCPL2601, HCPL2611 Dual-Channel: HCPL2630, HCPL2631 Description The 6N137, HCPL2601, HCPL2611 single−channel and HCPL2630, HCPL2631 dual−channel optocouplers consist of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photo−detector logic gate with a strobable output. This output features an open collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over the temperature range of −40°C to +85°C. A maximum input signal of 5 mA will provide a minimum output sink current of 13 mA (fan out of 8). An internal noise shield provides superior common mode rejection of typically 10 kV/ms. The HCPL2601 and HCPL2631 has a minimum CMR of 5 kV/ms.
