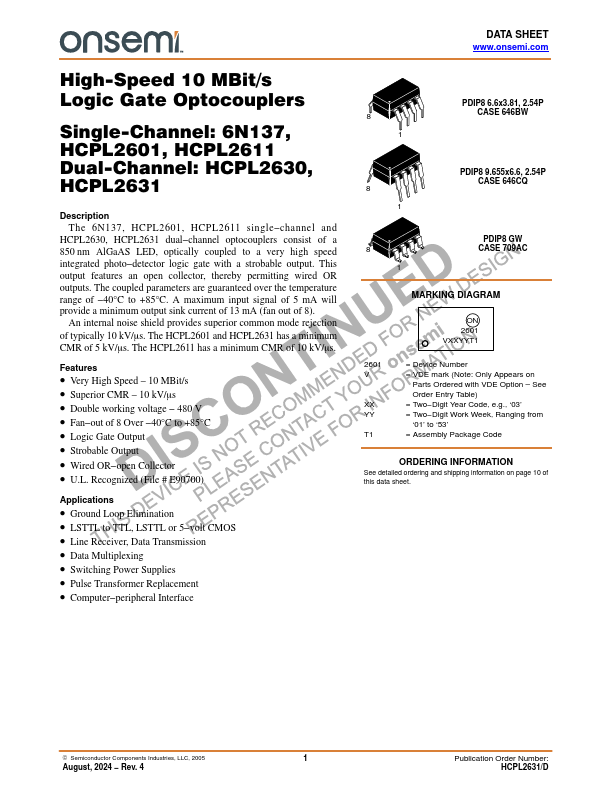

HCPL2611 Overview
The 6N137, HCPL2601, HCPL2611 single−channel and HCPL2630, HCPL2631 dual−channel optocouplers consist of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photo−detector logic gate with a strobable output.
HCPL2611 Key Features
- Very High Speed
- 10 MBit/s
- Superior CMR
- 10 kV/ms
- Double working voltage
- Fan-out of 8 Over -40°C to +85°C
- Logic Gate Output
- Strobable Output
- Wired OR-open Collector
- U.L. Recognized (File # E90700)
