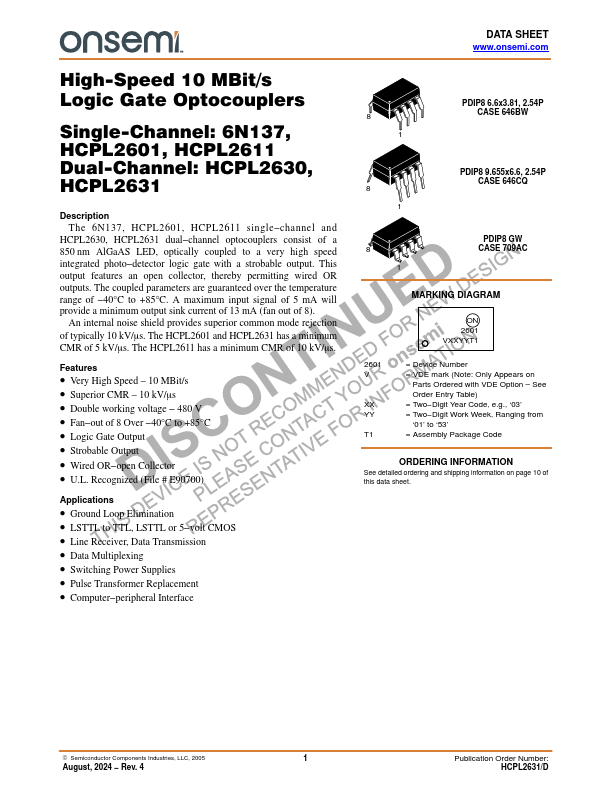

HCPL2630 Datasheet Logic Gate Optocoupler

Manufacturer: onsemi

Overview: High-Speed 10 MBit/s Logic Gate Optocouplers Single-Channel: 6N137, HCPL2601, HCPL2611 Dual-Channel: HCPL2630,.

This datasheet includes multiple variants, all published together in a single manufacturer document.

General Description

The 6N137, HCPL2601, HCPL2611 single−channel and HCPL2630, HCPL2631 dual−channel optocouplers consist of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photo−detector logic gate with a strobable output.

This output

Key Features

  • an open collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over the temperature range of.
  • 40°C to +85°C. A maximum input signal of 5 mA will provide a minimum output sink current of 13 mA (fan out of 8). An internal noise shield provides superior common mode rejection of typically 10 kV/ms. The HCPL2601 and HCPL2631 has a minimum CMR of 5 kV/ms. The HCPL2611 has a minimum CMR of 10 kV/ms. Features.
  • Very High Speed.
  • 10 MBit/s.
