KA317
KA317 is 3-Terminal Positive Adjustable Regulator manufactured by onsemi.
Features
- Output-Current In Excess of 1.5 A
- Output-Adjustable Between 1.2 V and 37 V
- Internal Thermal Overload Protection
- Internal Short-Circuit Current Limiting
- Output-Transistor Safe Operating Area pensation
- TO-220 Package
Description
This monolithic integrated circuit is an adjustable 3-terminal positive-voltage regulator designed to supply more than 1.5 A of load current with an output voltage adjustable over a 1.2 V to 37 V range. It employs internal current limiting, thermal shutdown, and safe area pensation.
TO-220
Output
1. Adj 2. Output 3. Input
Ordering Information
Product Number LM317T KA317TU
Package TO-220 (Single Gauge) TO-220 (Dual Gauge)
Block Diagram
Vin 3 Input
Packing Method Rail Rail
Operating Temperature 0°C to +125°C 0°C to +125°C
Voltage Reference
Protection Circuitry
VVAa ADd Jjj
Figure 1. Block...

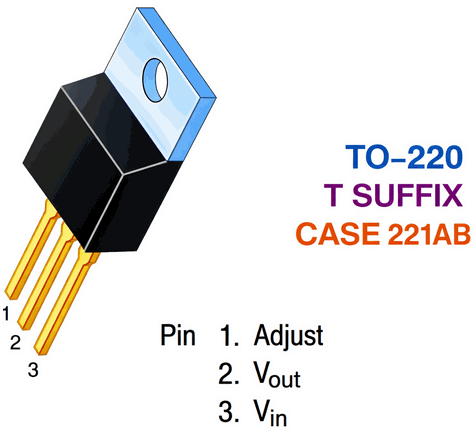

Representative KA317 image (package may vary by manufacturer)
