LM358D Datasheet Single Supply Dual Operational Amplifiers

Manufacturer: onsemi

Download the LM358D datasheet PDF. This datasheet also includes the LM358 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LM358-ONSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LM358D
Manufacturer onsemi
File Size 368.49 KB
Description Single Supply Dual Operational Amplifiers
Datasheet download datasheet LM358D Datasheet

Overview

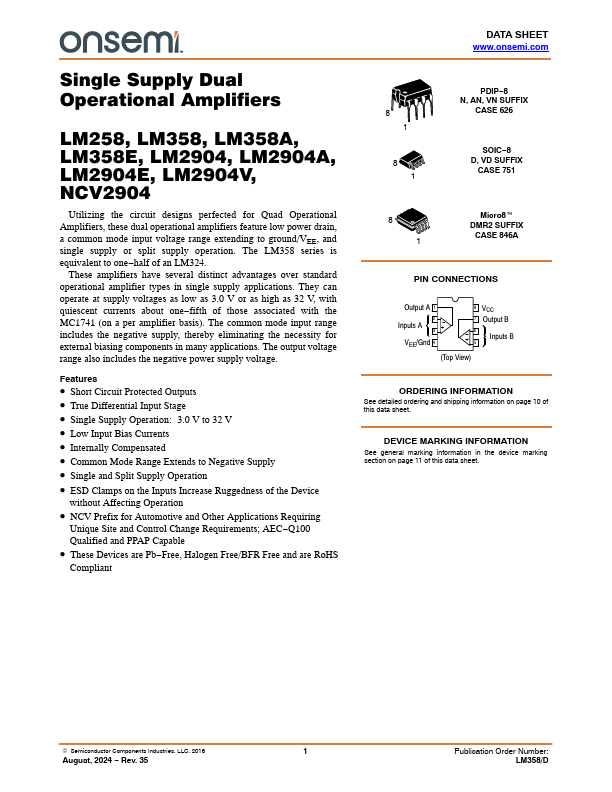

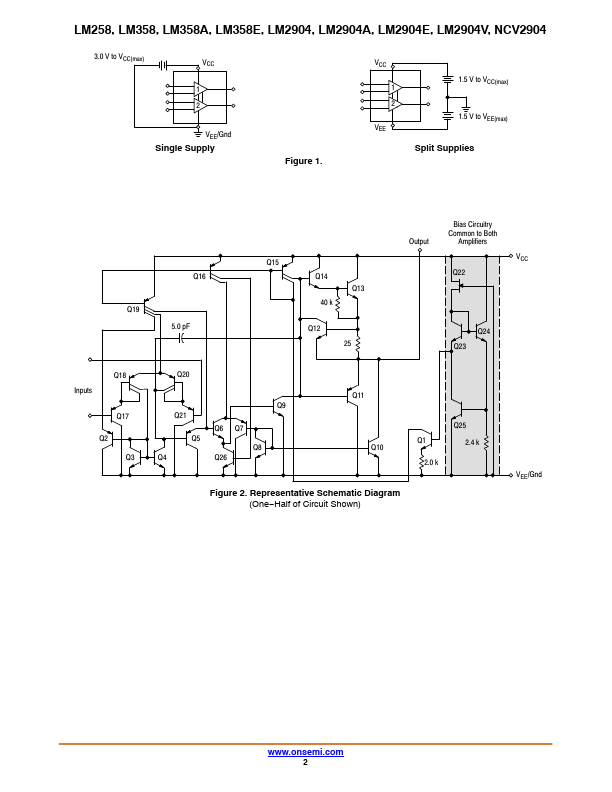

Single Supply Dual Operational Amplifiers LM258, LM358, LM358A, LM358E, LM2904, LM2904A, LM2904E, LM2904V, NCV2904 Utilizing the circuit designs perfected for Quad Operational Amplifiers, these dual operational amplifiers feature low power drain, a common mode input voltage range extending to ground/VEE, and single supply or split supply operation.

The LM358 series is equivalent to one−half of an LM324.

These amplifiers have several distinct advantages over standard operational amplifier types in single supply applications.

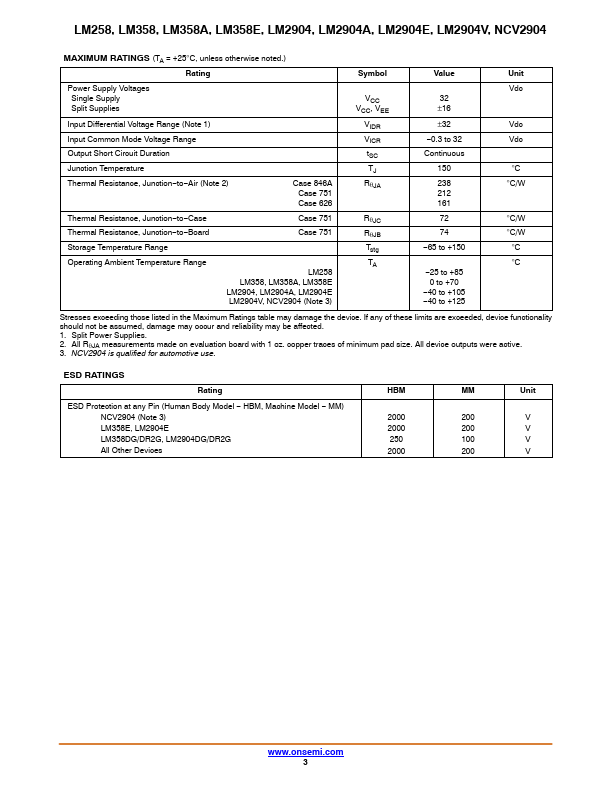

Key Features

  • Short Circuit Protected Outputs.
  • True Differential Input Stage.
  • Single Supply Operation: 3.0 V to 32 V.
  • Low Input Bias Currents.
  • Internally Compensated.
  • Common Mode Range Extends to Negative Supply.
  • Single and Split Supply Operation.
  • ESD Clamps on the Inputs Increase Ruggedness of the Device without Affecting Operation.
  • NCV Prefix for Automotive and Other.
