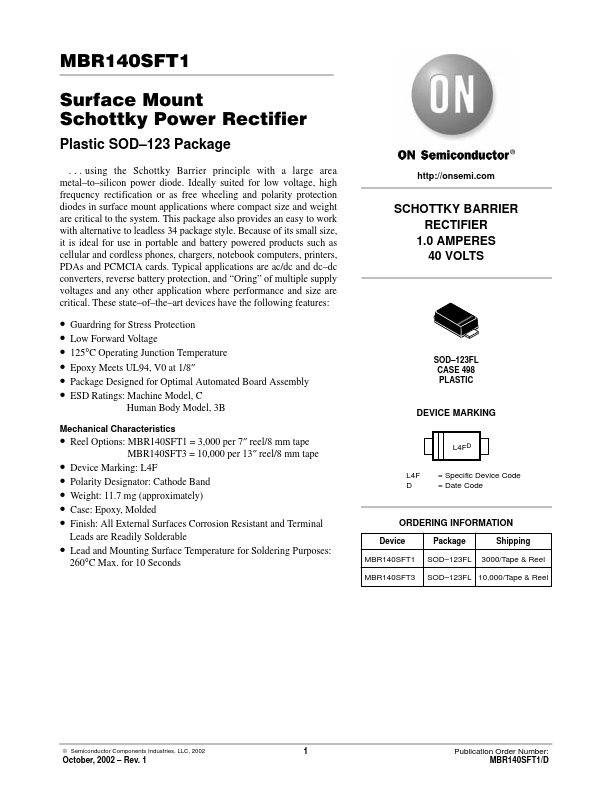

MBR140SFT1 Overview
MBR140SFT1 Surface Mount Schottky Power Rectifier Plastic SOD 123 Package . using the Schottky Barrier principle with a large area metal to silicon power diode. Ideally suited for low voltage, high frequency rectification or as free wheeling and polarity protection diodes in surface mount applications where pact size and weight are critical to the system.
MBR140SFT1 Key Features
- Guardring for Stress Protection
- Low Forward Voltage
- 125°C Operating Junction Temperature
- Epoxy Meets UL94, V0 at 1/8″
- Package Designed for Optimal Automated Board Assembly
- ESD Ratings: Machine Model, C
- Reel Options: MBR140SFT1 = 3,000 per 7″ reel/8 mm tape
- Device Marking: L4F
- Polarity Designator: Cathode Band
- Weight: 11.7 mg (approximately)
