MBR8H100MFS - SWITCHMODE Power Rectifiers

Features

  • Low Power Loss / High Efficiency.
  • New Package Provides Capability of Inspection and Probe After Board Mounting.
  • Guardring for Stress Protection.
  • Low Forward Voltage Drop.
  • 175°C Operating Junction Temperature.
  • WF Suffix for Products with Wettable Flanks.
  • NRVB Prefix for Automotive and Other.

📥 Download Datasheet

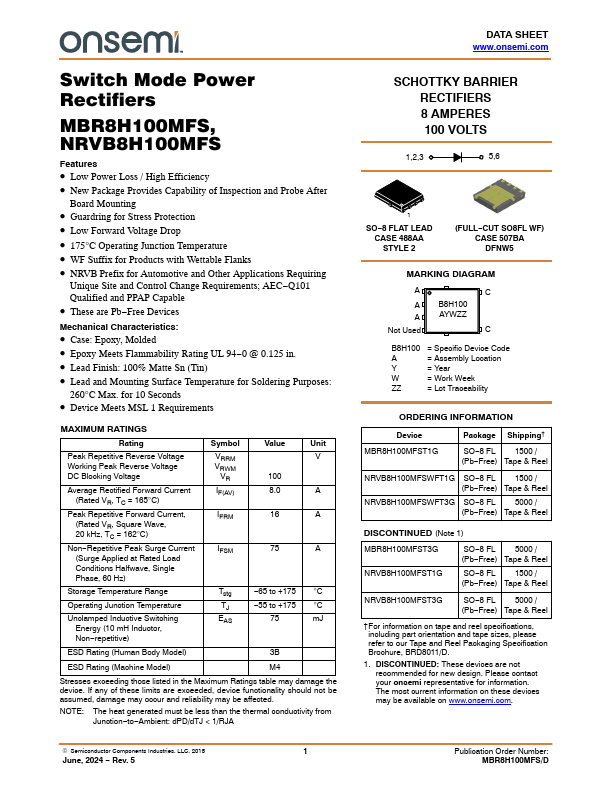

Datasheet preview – MBR8H100MFS

Datasheet Details

Part number MBR8H100MFS
Manufacturer ON Semiconductor
File Size 59.33 KB
Description SWITCHMODE Power Rectifiers
Datasheet download datasheet MBR8H100MFS Datasheet

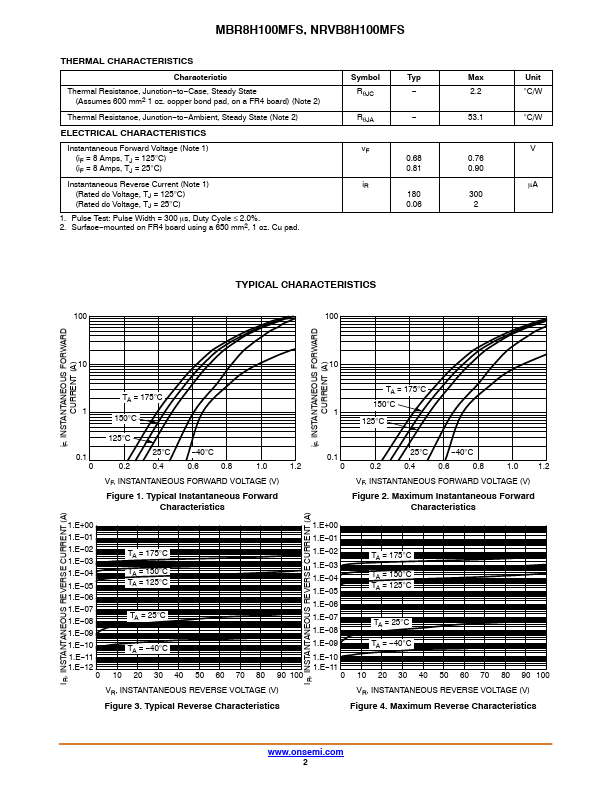

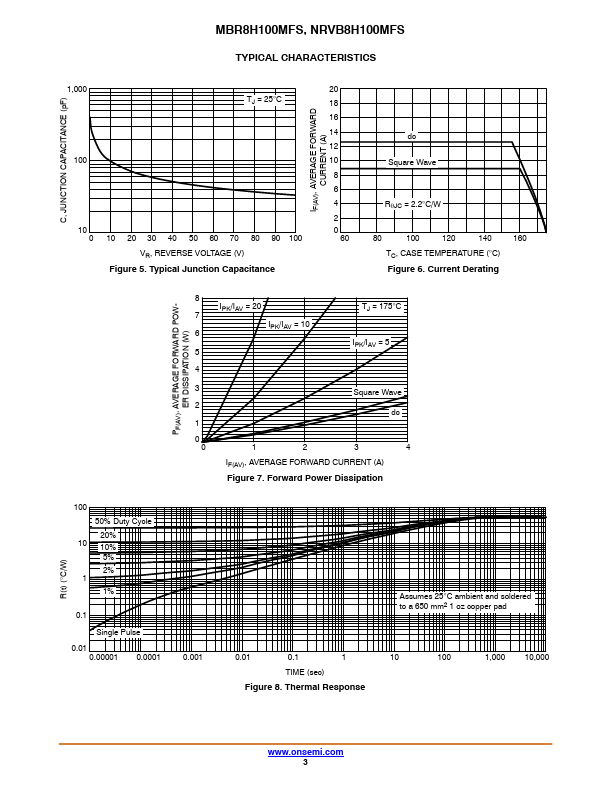

Additional preview pages of the MBR8H100MFS datasheet.

📁 Similar Datasheet

  • MBR80100 - SCHOTTKY DIODE MODULE (DACO SEMICONDUCTOR)
  • MBR80100 - 80 Amp Schottky Barrier Rectifier (MCC)
  • MBR80100 - (MBR8020 - MBR80100R) SCHOTTKY DIODES (TRANSYS)
  • MBR80100 - (MBR8045 - MBR80100R) Schottky Power Diode (Naina Semiconductor)
  • MBR80100 - Silicon Power Schottky Diode (America Semiconductor)
  • MBR80100 - Silicon Power Schottky Diode (GeneSiC)
  • MBR80100R - SCHOTTKY DIODE MODULE (DACO SEMICONDUCTOR)
  • MBR80100R - (MBR8020 - MBR80100R) SCHOTTKY DIODES (TRANSYS)
  • MBR80100R - (MBR8045 - MBR80100R) Schottky Power Diode (Naina Semiconductor)
  • MBR80100R - Silicon Power Schottky Diode (America Semiconductor)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
MBR8H100MFS, NRVB8H100MFS Switch Mode Power Rectifiers Features • Low Power Loss / High Efficiency • New Package Provides Capability of Inspection and Probe After Board Mounting • Guardring for Stress Protection • Low Forward Voltage Drop • 175°C Operating Junction Temperature • WF Suffix for Products with Wettable Flanks • NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These are Pb−Free Devices Mechanical Characteristics: • Case: Epoxy, Molded • Epoxy Meets Flammability Rating UL 94−0 @ 0.125 in. • Lead Finish: 100% Matte Sn (Tin) • Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max.
