MBRS230L - Surface Mount Schottky Power Rectifier

onsemi

Key Features

epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency switching power supplies; free wheeling diodes and polarity protection diodes. Features.
Compact Package with J.
Bend Leads Ideal for Automated Handling.
Highly Stable Oxide Passivated Junction.
Guardring for Over.
Voltage Protection.
Low Forward Voltage Drop.
NRVBS Prefix for Automotive and Other.

MBRS230L surface mount schottky power rectifier by onsemi - Datasheet Preview

Datasheet Details

Part number	MBRS230L
Manufacturer	onsemi
File Size	248.58 KB
Description	Surface Mount Schottky Power Rectifier
Datasheet	MBRS230L Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
MBRS230L	2.0A LOW VF SURFACE MOUNT SCHOTTKY BARRIER DIODE	WON-TOP
MBRS230	SURFACE MOUNT SCHOTTKY BARRIER DIODES	Sunmate
MBRS230G	2.0A Surface Mount Schottky Barrier Rectifiers	American First Semiconductor
MBRS20100CT	Dual Common Cathode Schottky Rectifiers	JGD
MBRS20100CT	Dual Common Cathode Schottky Rectifier	Taiwan Semiconductor

Other Datasheets by onsemi

Part Number	Description
MBRS230LT3	Surface Mount Schottky Power Rectifier
MBRS2040LT3G	Schottky Power Rectifier
MBRS240LT3G	Surface Mount Schottky Power Rectifier
MBRS260T3	Surface Mount Schottky Power Rectifier
MBRS260T3G	Surface Mount Schottky Power Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

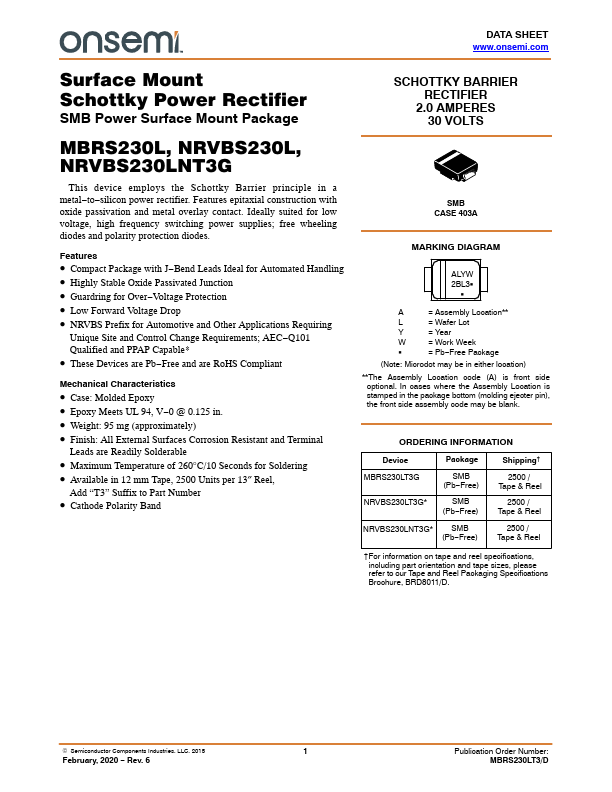

Surface Mount Schottky Power Rectifier MBRS230L, NRVBS230L, NRVBS230LNT3G SMB Power Surface Mount Package This device employs the Schottky Barrier principle in a metal−to−silicon power rectifier. Features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency switching power supplies; free wheeling diodes and polarity protection diodes.
