MC33079 - Low Noise Dual/Quad Operational Amplifiers

Datasheet Summary

Features

  • Dual Supply Operation: $5.0 V to $18 V.
  • Low Voltage Noise: 4.5 nV/ǸHz.
  • Low Input Offset Voltage: 0.15 mV.
  • Low T. C. of Input Offset Voltage: 2.0 mV/°C.
  • Low Total Harmonic Distortion: 0.002%.
  • High Gain Bandwidth Product: 16 MHz.
  • High Slew Rate: 7.0 V/ms.
  • High Open Loop AC Gain: 800 @ 20 kHz.
  • Excellent Frequency Stability.
  • Large Output Voltage Swing: +14.1 V/.
  • 14.6 V.
  • ESD Diodes Provided on t.

📥 Download Datasheet

Datasheet preview – MC33079

Datasheet Details

Part number MC33079
Manufacturer ON Semiconductor
File Size 405.17 KB
Description Low Noise Dual/Quad Operational Amplifiers
Datasheet download datasheet MC33079 Datasheet

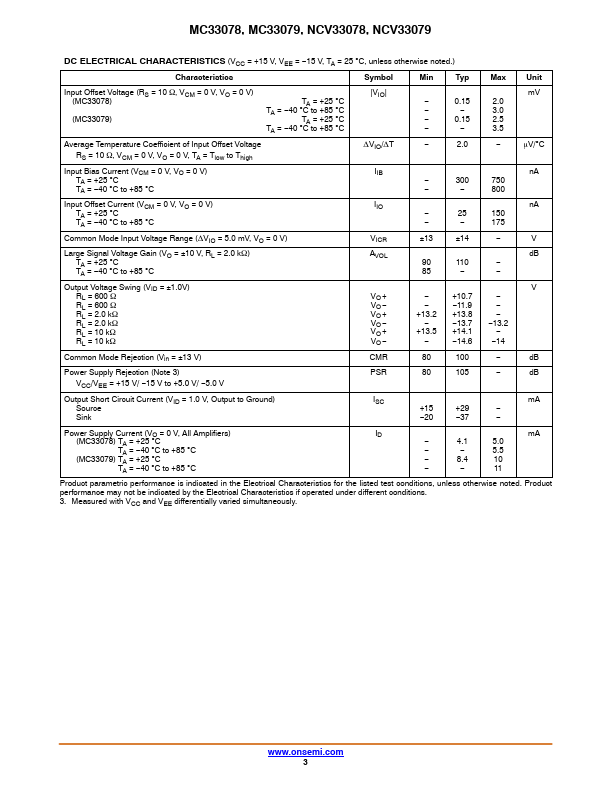

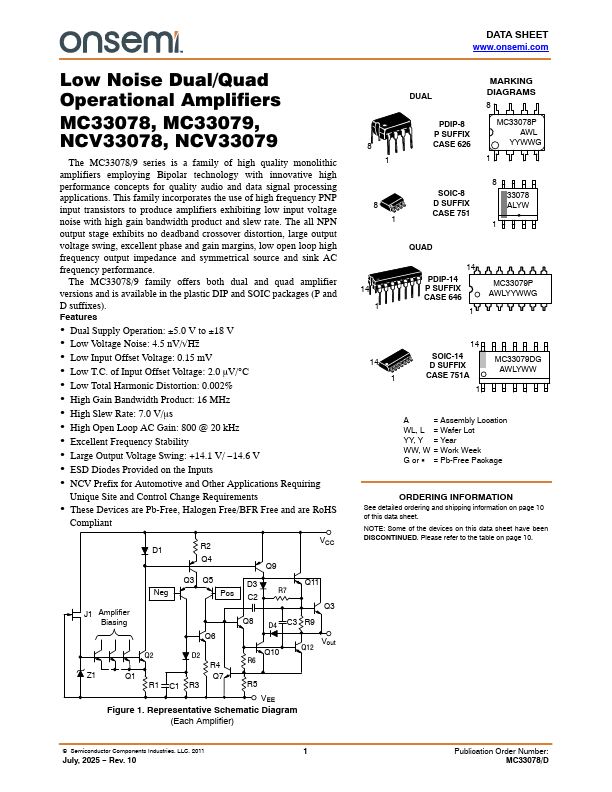

Additional preview pages of the MC33079 datasheet.

📁 Similar Datasheet

  • MC33079 - LOW NOISE QUAD OPERATIONAL AMPLIFIERS (ST Microelectronics)
  • MC33071 - HIGH BANDWIDTH SINGLE SUPPLY OPERATIONAL AMPLIFIERS (Motorola)
  • MC33072 - HIGH BANDWIDTH SINGLE SUPPLY OPERATIONAL AMPLIFIERS (Motorola)
  • MC33074 - HIGH BANDWIDTH SINGLE SUPPLY OPERATIONAL AMPLIFIERS (Motorola)
  • MC33076 - DUAL HIGH OUTPUT CURRENT OPERATIONAL AMPLIFIER (Motorola)
  • MC33077 - LOW NOISE OPERATIONAL AMPLIFIER (Motorola)
  • MC33078 - Low noise dual operational amplifier (STMicroelectronics)
  • MC33078 - DUAL HIGH-SPEED LOW-NOISE OPERATIONAL AMPLIFIER (Texas Instruments)
  • MC33078 - DUAL/QUAD LOW NOISE OPERATIONAL AMPLIFIERS (Motorola)
  • MC33078 - DUAL LOW NOISE OPERATIONAL AMPLIFIERS (Unisonic Technologies)
Other Datasheets by ON Semiconductor
  • MC33071 - Operational Amplifiers
  • MC33071A - Operational Amplifiers
  • MC33072 - Operational Amplifiers
  • MC33072A - Operational Amplifiers
  • MC33074 - Operational Amplifiers
  • MC33074A - Operational Amplifiers
  • MC33076 - Low Noise Bipolar Operational Amplifier
  • MC33077 - Low Noise Dual Operational Amplifier

Full PDF Text Transcription

Click to expand full text
MC33078, MC33079, NCV33078, NCV33079 Low Noise Dual/Quad Operational Amplifiers The MC33078/9 series is a family of high quality monolithic amplifiers employing Bipolar technology with innovative high performance concepts for quality audio and data signal processing applications. This family incorporates the use of high frequency PNP input transistors to produce amplifiers exhibiting low input voltage noise with high gain bandwidth product and slew rate. The all NPN output stage exhibits no deadband crossover distortion, large output voltage swing, excellent phase and gain margins, low open loop high frequency output impedance and symmetrical source and sink AC frequency performance.
