MC33151 - High Speed Dual MOSFET Drivers

Download the MC33151 datasheet PDF. This datasheet also covers the MC34151 variant, as both devices belong to the same high speed dual mosfet drivers family and are provided as variant models within a single manufacturer datasheet.

General Description

The MC34151 is a dual inverting high speed driver specifically designed to interface low current digital circuitry with power MOSFETs.

Key Features

  • thresholds are crossed. The inputs are designed to accept a signal amplitude ranging from ground to VCC. This allows the output of one channel to directly drive the input of a second channel for master.
  • slave operation. Each input has a 30 kΩ pull.
  • down resistor so that an unconnected open input will cause the associated Drive Output to be in a known high state. Each totem pole Drive Output is capable of sourcing and sinking up to 1.5 A with a typical ‘on’ resistance of 2.4 Ω at.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MC34151_ONSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MC33151
Manufacturer onsemi
File Size 252.92 KB
Description High Speed Dual MOSFET Drivers
Datasheet download datasheet MC33151 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MC33151 HIGH SPEED DUAL MOSFET DRIVERS Motorola
MC33152 HIGH SPEED DUAL MOSFET DRIVERS Motorola
MC33153 SINGLE IGBT GATE DRIVER Motorola
MC33153D IGBT driver Art Chip
MC33153P IGBT driver Art Chip

Other Datasheets by onsemi

Part Number Description
MC33152 HIGH SPEED DUAL MOSFET DRIVERS
MC33153 Single IGBT Gate Driver
MC33157 Half Bridge Controller and Driver for Industrial Linear Tubes
MC33160 5.0V Voltage Regulator and Supervisory Circuit
MC33161 Universal Voltage Monitors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

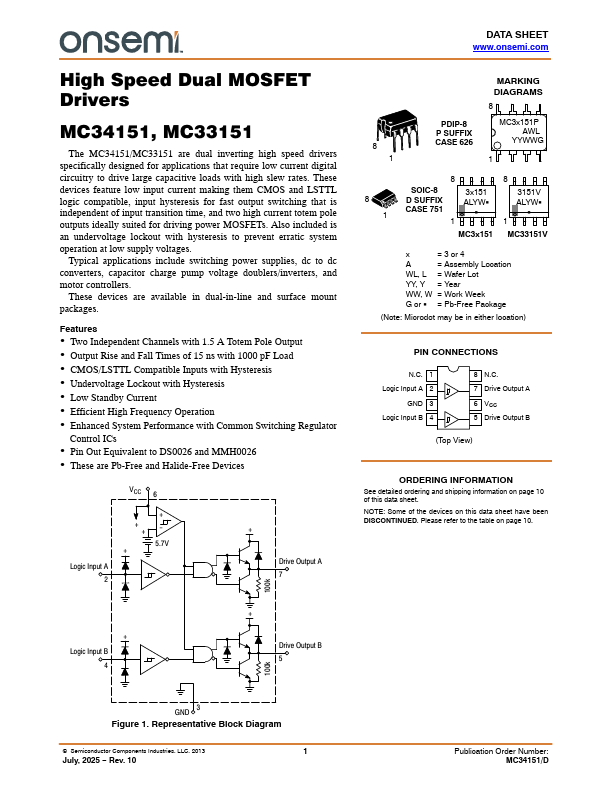

MC34151, MC33151 High Speed Dual MOSFET Drivers The MC34151/MC33151 are dual inverting high speed drivers specifically designed for applications that require low current digital circuitry to drive large capacitive loads with high slew rates. These devices feature low input current making them CMOS and LSTTL logic compatible, input hysteresis for fast output switching that is independent of input transition time, and two high current totem pole outputs ideally suited for driving power MOSFETs. Also included is an undervoltage lockout with hysteresis to prevent erratic system operation at low supply voltages. Typical applications include switching power supplies, dc to dc converters, capacitor charge pump voltage doublers/inverters, and motor controllers.
