MC34001 Datasheet JFET Input Operational Amplifiers

Manufacturer: onsemi

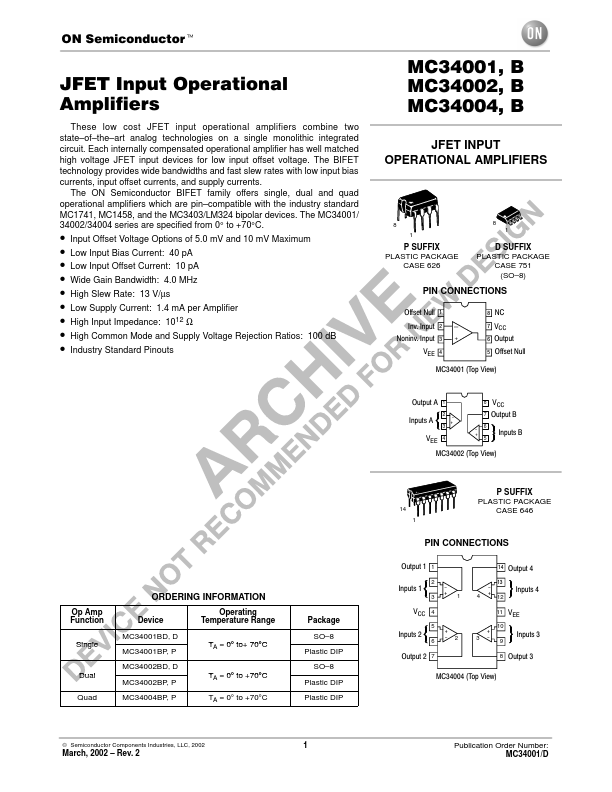

Overview: w m o c . JFET Input Operational U 4 t Amplifiers e e h S a at .D w w • • • • • • • • Low Input Bias Current: 40 pA Low Input Offset Current: 10 pA Wide Gain Bandwidth: 4.

Datasheet Details

Part number	MC34001
Manufacturer	onsemi
File Size	193.30 KB
Description	JFET INPUT OPERATIONAL AMPLIFIERS
Datasheet	MC34001_ONSemiconductor.pdf

Key Features

Hi-speed, low-reverse leakage diode Figure 14. Long Interval RC Timer +15 V MC34001 6 4 -15 V R6 Figure 15. Isolating Large Capacitive Loads R2 5.1 k VCC R1 5.1 k 2 +2.0 V 0 -2.0 V MC34001 + 3 7 4 6 20 pF CC R3 10 RL 5.1 k CL 0.5 µF IO VO VR R4 R1 V1 R2 R3 2 3 7 + Run Clear C.
R5.
Polycarbonate or ăPolystyrene Capacitor VEE Overshoot t 10% ts = 10 µs When driving large CL, the VO slew rate is determined by CL a.
