MC34151 Datasheet High Speed Dual MOSFET Drivers

Manufacturer: onsemi

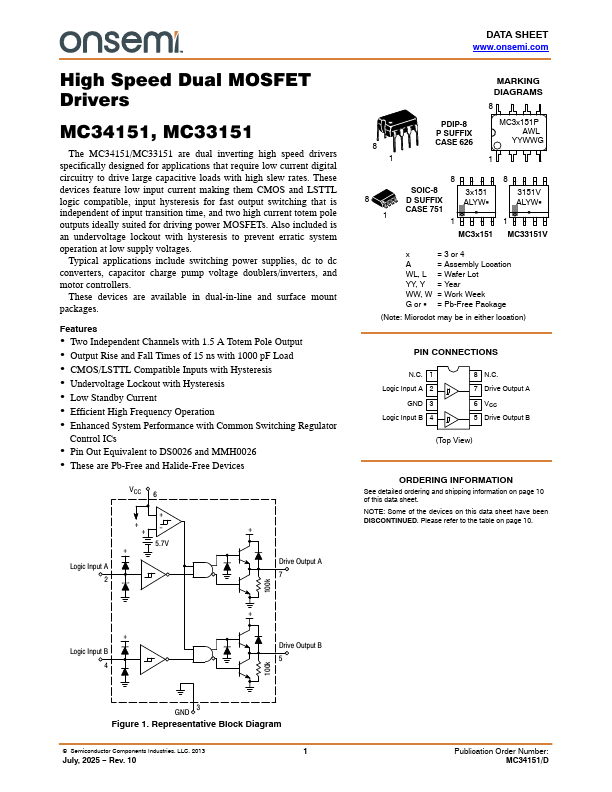

Overview: MC34151, MC33151 High Speed Dual MOSFET Drivers The MC34151/MC33151 are dual inverting high speed drivers specifically designed for applications that require low current digital circuitry to drive.

Key Features

  • thresholds are crossed. The inputs are designed to accept a signal amplitude ranging from ground to VCC. This allows the output of one channel to directly drive the input of a second channel for master.
  • slave operation. Each input has a 30 kΩ pull.
  • down resistor so that an unconnected open input will cause the associated Drive Output to be in a known high state. Each totem pole Drive Output is capable of sourcing and sinking up to 1.5 A with a typical ‘on’ resistance of 2.4 Ω at.
