MC74HCT08A - Quad 2-Input AND Gate

onsemi

Key Features

Output Drive Capability: 10 LSTTL Loads.
Outputs Directly Interface to CMOS, NMOS and TTL.
Operating Voltage Range: 2.0 to 6.0 V (HC), 4.5 to 5.5 V (HCT).
Low Input Current: 1 mA.
High Noise Immunity Characteristic of CMOS Devices.
In Compliance With the JEDEC Standard No. 7A Requirements.
Chip Complexity: 24 FETs or 6 Equivalent Gates.
Q Suffix for Automotive and Other.

MC74HCT08A quad 2-input and gate by onsemi - Datasheet Preview

Datasheet Details

Part number	MC74HCT08A
Manufacturer	onsemi
File Size	232.26 KB
Description	Quad 2-Input AND Gate
Datasheet	MC74HCT08A Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
MC74HCT08A	Quad 2-Input NAND Gate	Motorola
MC74HCT00A	Quad 2-Input NAND Gate	Motorola
MC74HCT04A	Hex Inverter	Motorola
MC74HCT138A	1-of-8 Decoder/Demultiplexer	Motorola
MC74HCT14A	Hex Schmitt-Trigger Inverter	Motorola

Other Datasheets by onsemi

Part Number	Description
MC74HCT04A	Hex Inverter
MC74HCT125A	Quad 3-State Noninverting Buffer
MC74HCT132A	Quad 2-Input NAND Gate
MC74HCT138A	1-of-8 Decoder/Demultiplexer
MC74HCT14A	Hex Schmitt-Trigger Inverter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

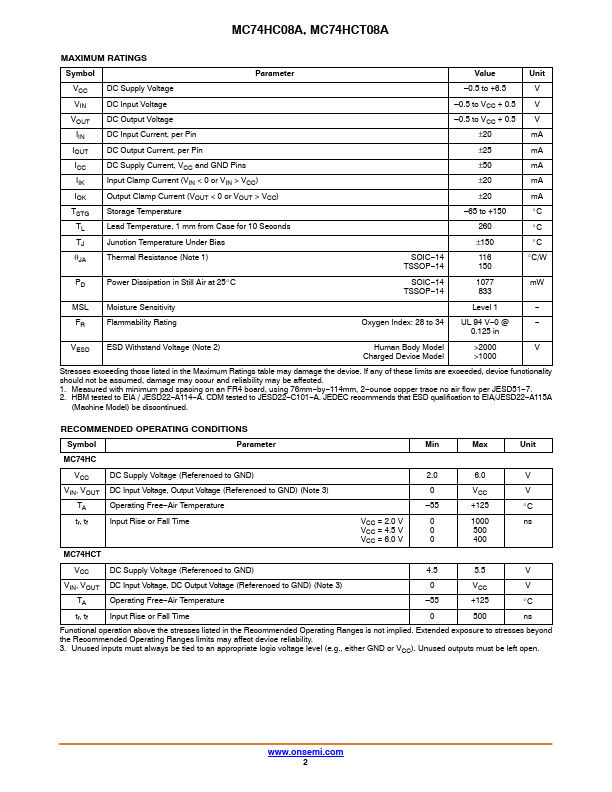

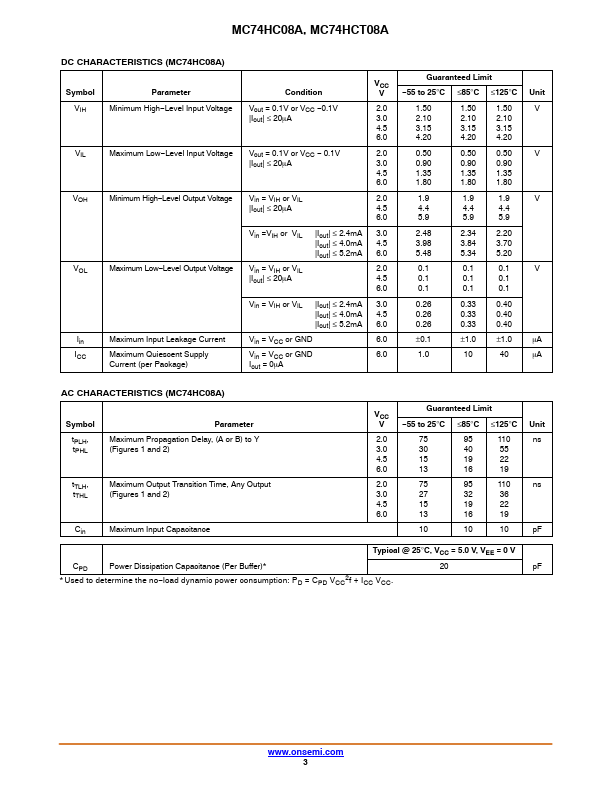

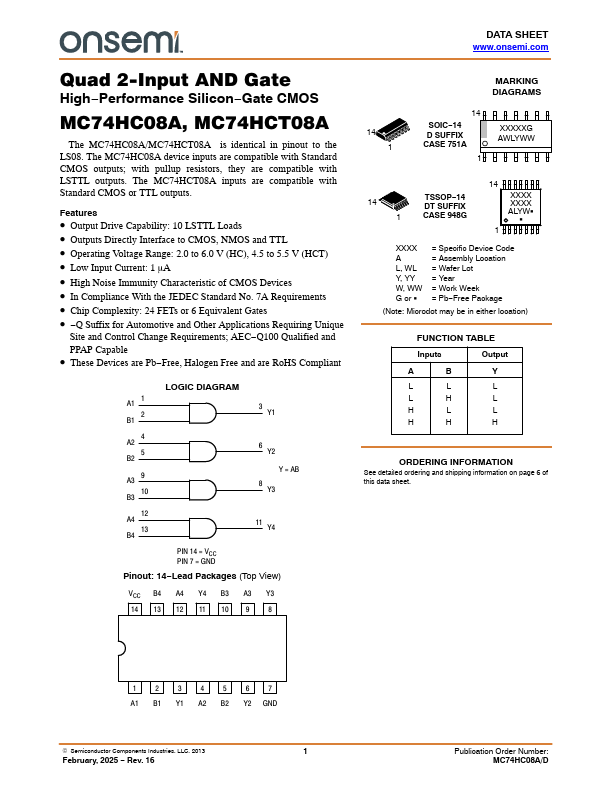

DATA SHEET www.onsemi.com Quad 2-Input AND Gate High−Performance Silicon−Gate CMOS MC74HC08A, MC74HCT08A The MC74HC08A/MC74HCT08A is identical in pinout to the LS08. The MC74HC08A device inputs are compatible with Standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. The MC74HCT08A inputs are compatible with Standard CMOS or TTL outputs. Features • Output Drive Capability: 10 LSTTL Loads • Outputs Directly Interface to CMOS, NMOS and TTL • Operating Voltage Range: 2.0 to 6.0 V (HC), 4.5 to 5.5 V (HCT) • Low Input Current: 1 mA • High Noise Immunity Characteristic of CMOS Devices • In Compliance With the JEDEC Standard No.
