MC74LCX74 - Low?Voltage CMOS Dual D?Type Flip?Flop

Datasheet Summary

Features

  • Designed for 1.65 V to 5.5 V VCC Operation.
  • 5.0 V Tolerant Inputs.
  • Interface Capability With 5.0 V TTL Logic.
  • LVTTL Compatible.
  • LVCMOS Compatible.
  • 24 mA Balanced Output Sink and Source Capability at VCC = 3.0 V.
  • Near Zero Static Supply Current in All Three Logic States (10 mA) Substantially Reduces System Power Requirements.
  • Latchup Performance Exceeds 100 mA.
  • ESD Performance: Human Body Model >2000 V.
  • The.

📥 Download Datasheet

Datasheet preview – MC74LCX74

Datasheet Details

Part number MC74LCX74
Manufacturer ON Semiconductor
File Size 204.81 KB
Description Low?Voltage CMOS Dual D?Type Flip?Flop
Datasheet download datasheet MC74LCX74 Datasheet

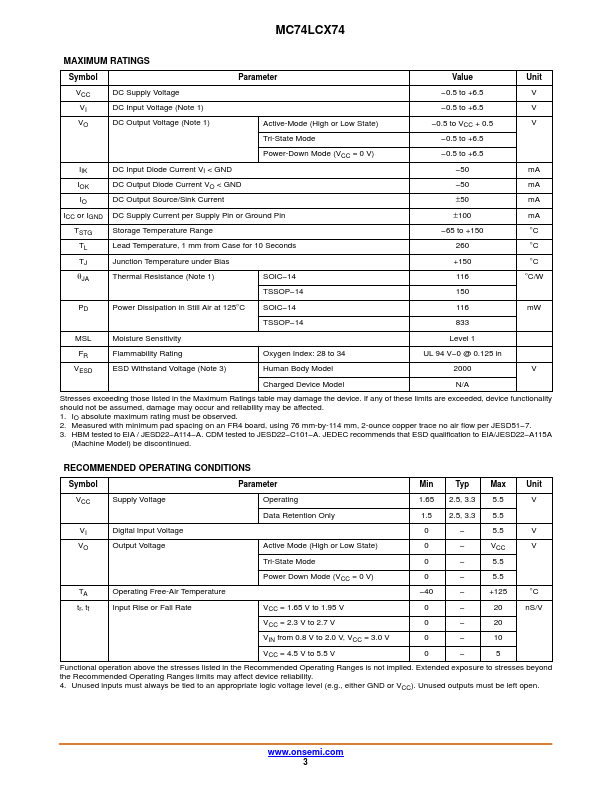

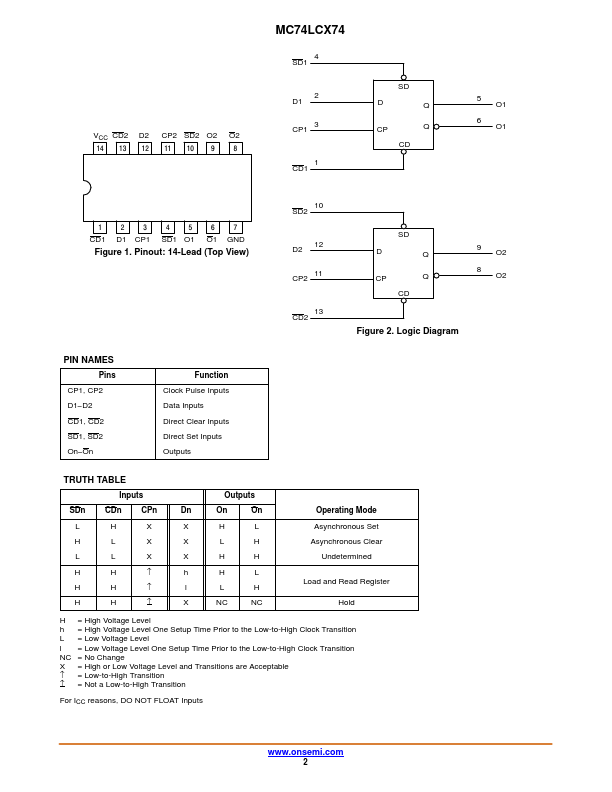

Additional preview pages of the MC74LCX74 datasheet.

📁 Similar Datasheet

  • MC74LCX74 - LOW-VOLTAGE CMOS DUAL D-TYPE FLIP-FLOP (Motorola)
  • MC74LCX00 - Low-Voltage CMOS Quad 2-Input NAND Gate (Motorola)
  • MC74LCX02 - LOW-VOLTAGE CMOS QUAD 2-INPUT NOR GATE (Motorola)
  • MC74LCX04 - LOW-VOLTAGE CMOS HEX INVERTER (Motorola)
  • MC74LCX05 - LOW-VOLTAGE CMOS HEX INVERTER OPEN DRAIN (Motorola)
  • MC74LCX08 - LOW-VOLTAGE CMOS QUAD 2-INPUT AND GATE (Motorola)
  • MC74LCX125 - LOW-VOLTAGE CMOS QUAD BUFFER (Motorola)
  • MC74LCX138 - Low-Voltage CMOS 1-of-8 Decoder/Demultiplexer (Motorola)
  • MC74LCX157 - LOW-VOLTAGE CMOS QUAD 2-INPUT MULTIPLEXER (Motorola)
  • MC74LCX158 - LOW-VOLTAGE CMOS QUAD 2-INPUT MULTIPLEXER (Motorola)
Other Datasheets by ON Semiconductor
  • MC74LCX00 - Low-Voltage CMOS Quad 2-Input NAND Gate
  • MC74LCX02 - Low-Voltage CMOS Quad 2-Input NOR Gate
  • MC74LCX04 - Low-Voltage CMOS Hex Inverter
  • MC74LCX06 - Low-Voltage CMOS Hex Inverter
  • MC74LCX07 - Low-Voltage CMOS Hex Buffer
  • MC74LCX08 - Low-Voltage CMOS Quad 2-Input AND Gate
  • MC74LCX125 - Low-Voltage CMOS Quad Buffer
  • MC74LCX138 - Low-Voltage CMOS 3-to-8 Decoder/Demultiplexer

Full PDF Text Transcription

Click to expand full text

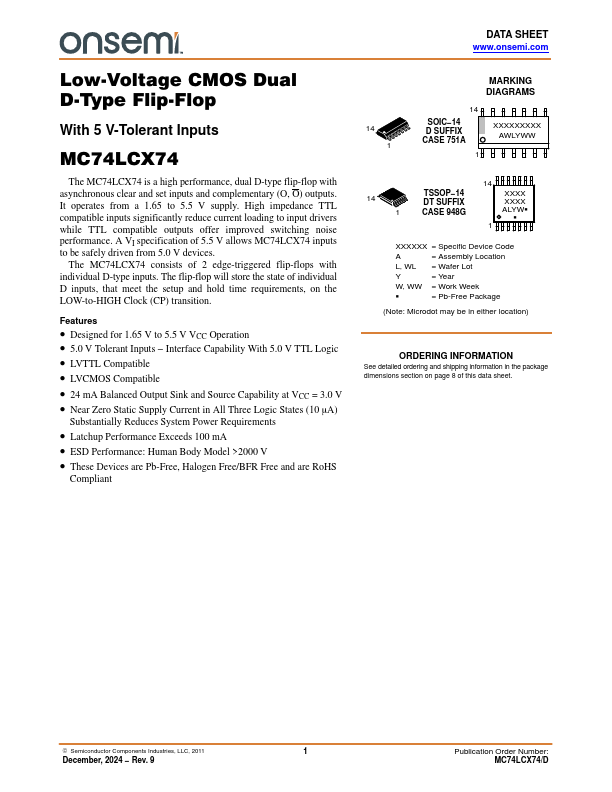

DATA SHEET www.onsemi.com Low‐Voltage CMOS Dual D‐Type Flip‐Flop With 5 V-Tolerant Inputs MC74LCX74 The MC74LCX74 is a high performance, dual D-type flip-flop with asynchronous clear and set inputs and complementary (O, O) outputs. It operates from a 1.65 to 5.5 V supply. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VI specification of 5.5 V allows MC74LCX74 inputs to be safely driven from 5.0 V devices. The MC74LCX74 consists of 2 edge-triggered flip-flops with individual D-type inputs. The flip-flop will store the state of individual D inputs, that meet the setup and hold time requirements, on the LOW-to-HIGH Clock (CP) transition. Features • Designed for 1.65 V to 5.
