MC74VHC1G126 - Noninverting 3-State Buffer

Datasheet Summary

Features

Designed for 2.0 V to 5.5 V VCC Operation.
3.5 ns tPD at 5 V (typ).
Inputs/Outputs Over.
Voltage Tolerant up to 5.5 V.
IOFF Supports Partial Power Down Protection.
Source/Sink 8 mA at 3.0 V.
Available in SC.
88A, SC.
74A, TSOP.
5, SOT.
553, SOT.
953 and UDFN6 Packages.
Chip Complexity < 100 FETs.
Q Suffix for Automotive and Other.

Datasheet Details

Part number	MC74VHC1G126
Manufacturer	ON Semiconductor
File Size	176.32 KB
Description	Noninverting 3-State Buffer
Datasheet	MC74VHC1G126 Datasheet
Additional preview pages of the MC74VHC1G126 datasheet.

📁 Similar Datasheet

MC74VHC1G14 - Schmitt-Trigger Inverter (ETL)

MC74VHC1G01 - 2-Input NAND Gate (Leshan Radio Company)

MC74VHC1G04 - Inverter (LRC)

MC74VHC1G05 - Inverter (ETL)

MC74VHC1G05 - Inverter (LRC)

MC74VHC1G09 - 2-Input AND Gate (ETL)

MC74VHC1GT00 - 2-Input NAND Gate / CMOS Logic Level Shifter (ETL)

MC74VHC1GT02 - 2-Input NOR Gate / CMOS Logic Level Shifter (ETL)

MC74VHC1GT04 - Inverting Buffer / CMOS Logic Level Shifter (ETL)

MC74VHC1GT14 - Schmitt-Trigger Inverter/ CMOS Logic Level Shifter (ETL)

Full PDF Text Transcription

Click to expand full text

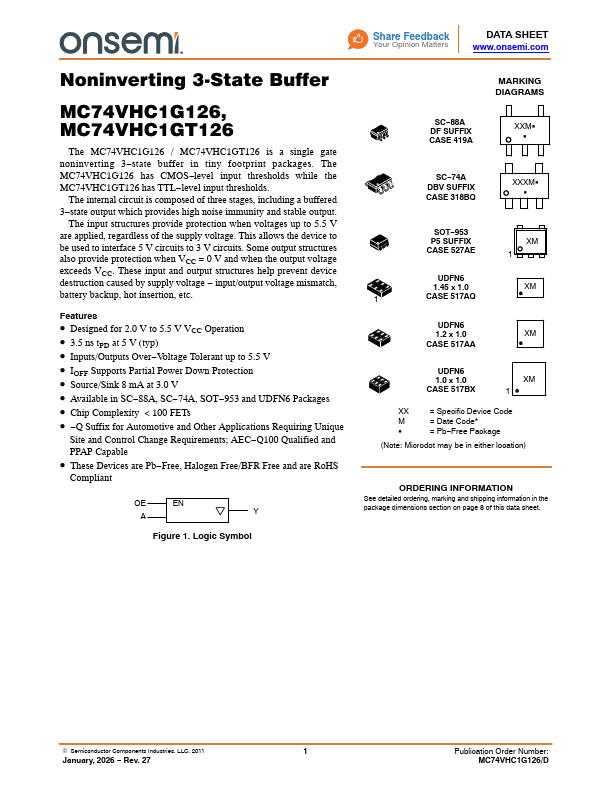

DATA SHEET www.onsemi.com Noninverting 3-State Buffer MC74VHC1G126, MC74VHC1GT126 The MC74VHC1G126 / MC74VHC1GT126 is a single gate noninverting 3−state buffer in tiny footprint packages. The MC74VHC1G126 has CMOS−level input thresholds while the MC74VHC1GT126 has TTL−level input thresholds. The internal circuit is composed of three stages, including a buffered 3−state output which provides high noise immunity and stable output. The input structures provide protection when voltages up to 5.5 V are applied, regardless of the supply voltage. This allows the device to be used to interface 5 V circuits to 3 V circuits. Some output structures also provide protection when VCC = 0 V and when the output voltage exceeds VCC.
