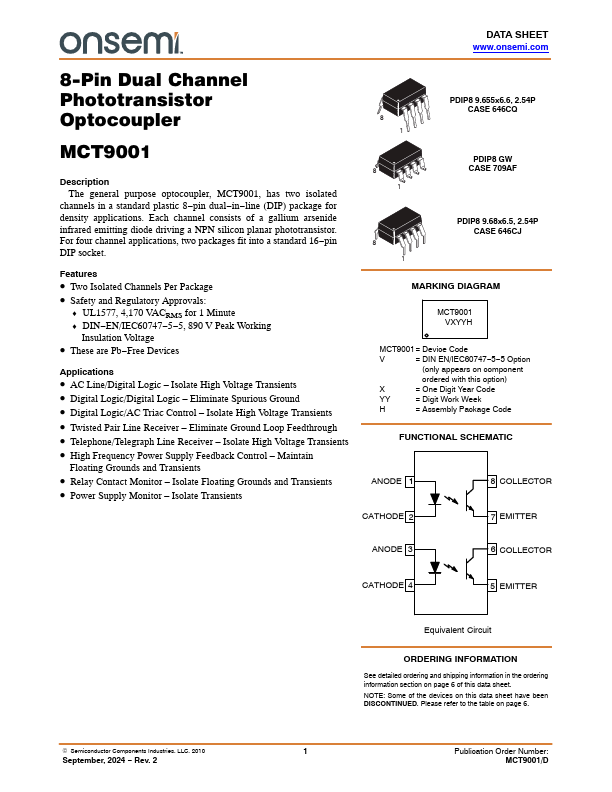

MCT9001
Description
The general purpose optocoupler, MCT9001, has two isolated channels in a standard plastic 8- pin dual- in- line (DIP) package for density applications. Each channel consists of a gallium arsenide infrared emitting diode driving a NPN silicon planar phototransistor. For four channel applications, two packages fit into a standard 16- pin DIP socket.
Features
- Two Isolated Channels Per Package
- Safety and Regulatory Approvals:
- UL1577, 4,170 VACRMS for 1 Minute
- DIN- EN/IEC60747- 5- 5, 890 V Peak Working
Insulation Voltage
- These are Pb- Free Devices
Applications
- AC Line/Digital Logic
- Isolate High Voltage Transients
- Digital Logic/Digital Logic
- Eliminate Spurious Ground
- Digital Logic/AC Triac Control
- Isolate High Voltage Transients
- Twisted Pair Line Receiver
- Eliminate Ground Loop Feedthrough
- Telephone/Telegraph Line Receiver
- Isolate High Voltage Transients
- High Frequency Power Supply Feedback Control
- Maintain
Floating Grounds and Transients
- Relay Contact...
