MJ15015G Overview

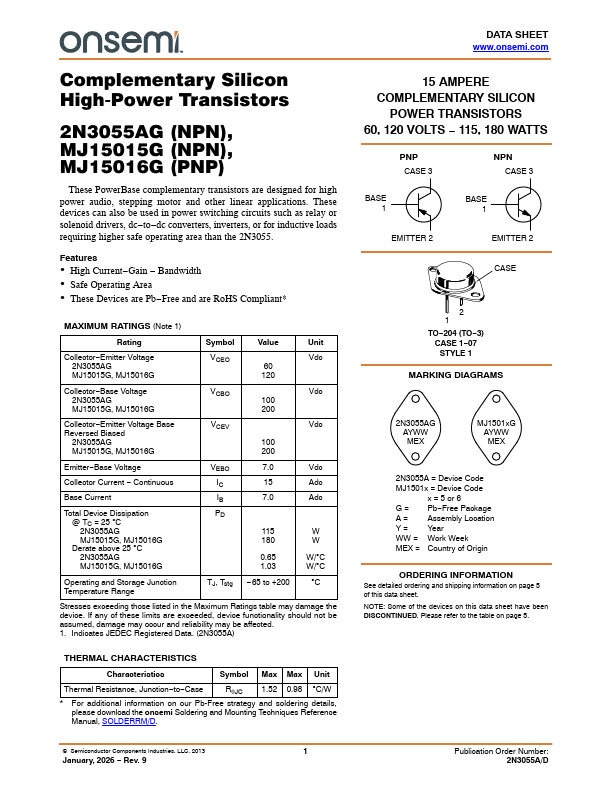

plementary Silicon High-Power Transistors 2N3055AG (NPN), MJ15015G (NPN), MJ15016G (PNP) These PowerBase plementary transistors are designed for high power audio, stepping motor and other linear applications. These devices can also be used in power switching circuits such as relay or solenoid drivers, dc−to−dc converters, inverters, or for inductive loads requiring higher safe operating area than the 2N3055.
MJ15015G Key Features
- High Current-Gain
- Bandwidth
- Safe Operating Area
- These Devices are Pb-Free and are RoHS pliant
- Continuous
- For additional information on our Pb-Free strategy and soldering details, please download the onsemi Soldering and Mount
- Rev. 8
- 115, 180 WATTS

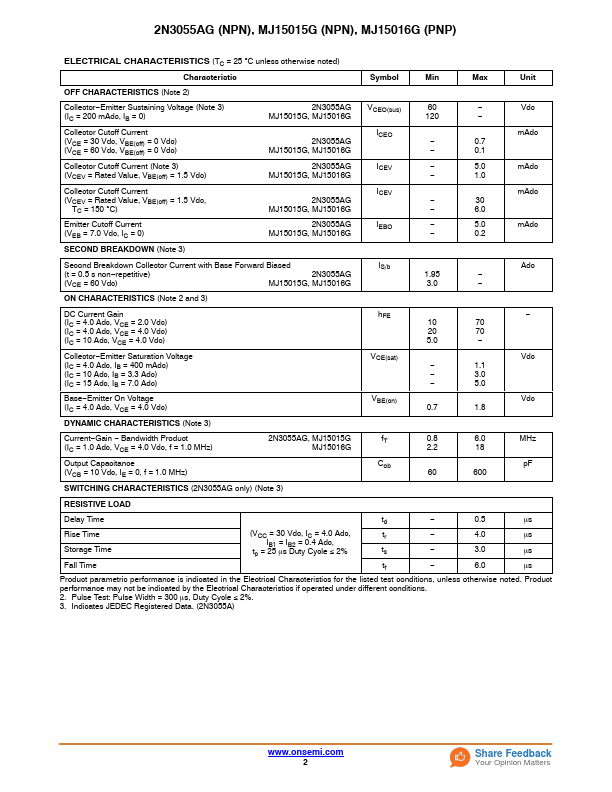

- Collector Cutoff Current (VCE = 30 Vdc, VBE(off) = 0 Vdc) (VCE = 60 Vdc, VBE(off) = 0 Vdc)
- MJ15015G, MJ15016G
MJ15015G Applications
- For additional information on our Pb−Free strategy and soldering details, please download the onsemi Soldering and Mounting Techniques Reference Manual, SOLDERR
