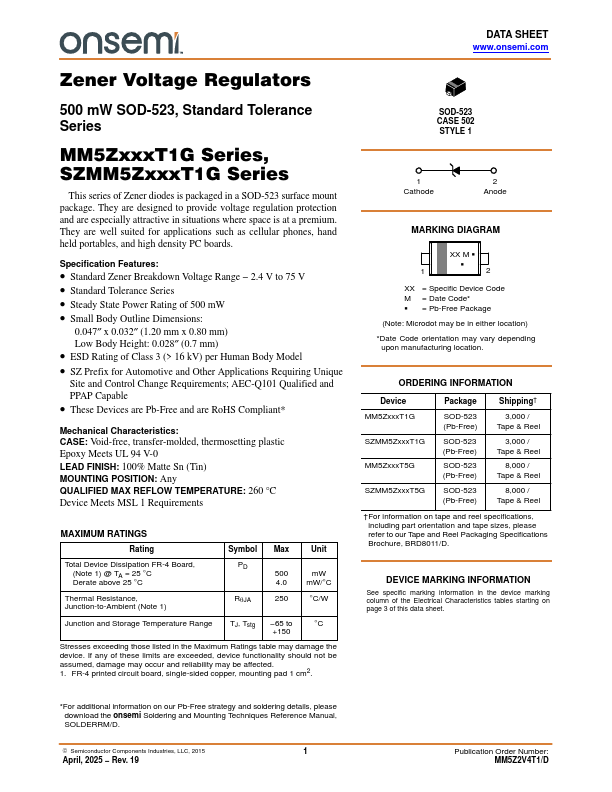

DATA SHEET .onsemi. Zener Voltage Regulators 500 mW SOD-523, Standard Tolerance Series MM5ZxxxT1G Series, SZMM5ZxxxT1G Series This series of Zener diodes is packaged in a SOD-523 surface mount package. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards. Specification Features : - Standard Zener Breakdown Voltage Range - 2.4 V to 75 V - Standard Tolerance Series - Steady State Power Rating of 500 mW - Small Body Outline Dimensions: 0.047″ x 0.032″ (1.20 mm x 0.80 mm) Low Body Height: 0.028″ (0.7...
