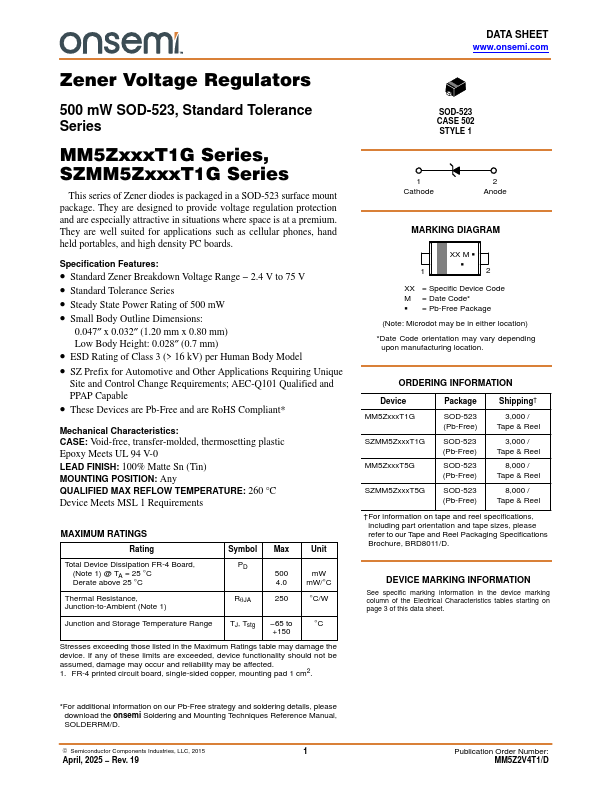

MM5Z3V3T1G
Features
:
- Standard Zener Breakdown Voltage Range
- 2.4 V to 75 V
- Standard Tolerance Series
- Steady State Power Rating of 500 m W
- Small Body Outline Dimensions:
0.047″ x 0.032″ (1.20 mm x 0.80 mm) Low Body Height: 0.028″ (0.7 mm)
- ESD Rating of Class 3 (> 16 k V) per Human Body Model
- SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
- These Devices are Pb-Free and are Ro HS pliant-
Mechanical Characteristics: CASE: Void-free, transfer-molded, thermosetting plastic Epoxy Meets UL 94 V-0 LEAD FINISH: 100% Matte Sn (Tin) MOUNTING POSITION: Any QUALIFIED MAX REFLOW TEMPERATURE: 260 °C Device Meets MSL 1 Requirements
MAXIMUM RATINGS
Rating
Symbol Max
Unit
Total Device Dissipation FR-4 Board, (Note 1) @ TA = 25 °C Derate above 25 °C
500 m W
4.0 m W/°C
Thermal Resistance, Junction-to-Ambient (Note 1)
Rq JA
°C/W
Junction and Storage Temperature Range TJ, Tstg
- 65 to
°C
+150
Stres...
