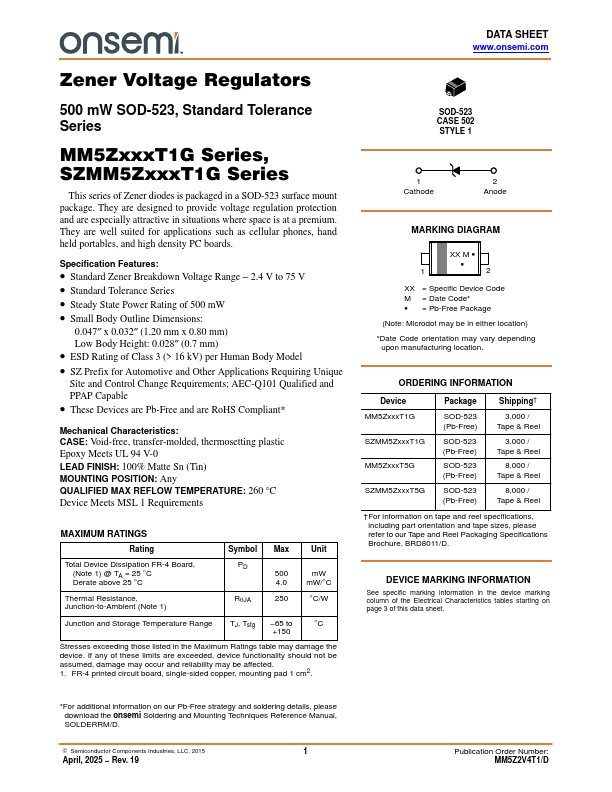

MM5Z5V1T1G Overview
Key Features
- Standard Zener Breakdown Voltage Range
- 2.4 V to 75 V
- Standard Tolerance Series
- Steady State Power Rating of 500 mW
- Small Body Outline Dimensions: 0.047″ x 0.032″ (1.20 mm x 0.80 mm) Low Body Height: 0.028″ (0.7 mm)
- ESD Rating of Class 3 (> 16 kV) per Human Body Model
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
