MM74HC04 - Hex Inverter

General Description

The MM74HC04 inverters utilize advanced silicon gate CMOS technology to achieve operating speeds similar to LS

TTL gates with the low power consumption of standard CMOS integrated circuits.

The MM74HC04 is a triple buffered inverter.

Key Features

  • Typical Propagation Delay: 8 ns.
  • Fan Out of 10 LS.
  • TTL Loads.
  • Quiescent Power Consumption: 10 mW Maximum at Room Temperature.
  • Low Input Current: 1 mA Maximum.
  • These Devices are Pb.
  • Free, Halide Free and are RoHS Compliant Connection Diagram DATA SHEET www. onsemi. com 14 1 SOIC.
  • 14 NB CASE 751A.
  • 03 14 1 SOIC.
  • 14 CASE 751EF 14 1 TSSOP.
  • 14 WB CASE 948G.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MM74HC04 Hex Inverter Fairchild
MM74HC00 Quad 2-Input NAND Gate Fairchild
MM74HC00 Quad 2-Input NAND Gate National Semiconductor
MM74HC02 Quad 2-Input NOR Gate Fairchild
MM74HC08 Quad 2-Input AND Gate Fairchild

Other Datasheets by onsemi

Part Number Description
MM74HC00 Quad 2-Input NAND Gate
MM74HC02 Quad 2-Input NOR Gate
MM74HC08 Quad 2-Input AND Gate
MM74HC125 3-STATE Quad Buffers
MM74HC126 3-STATE Quad Buffers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

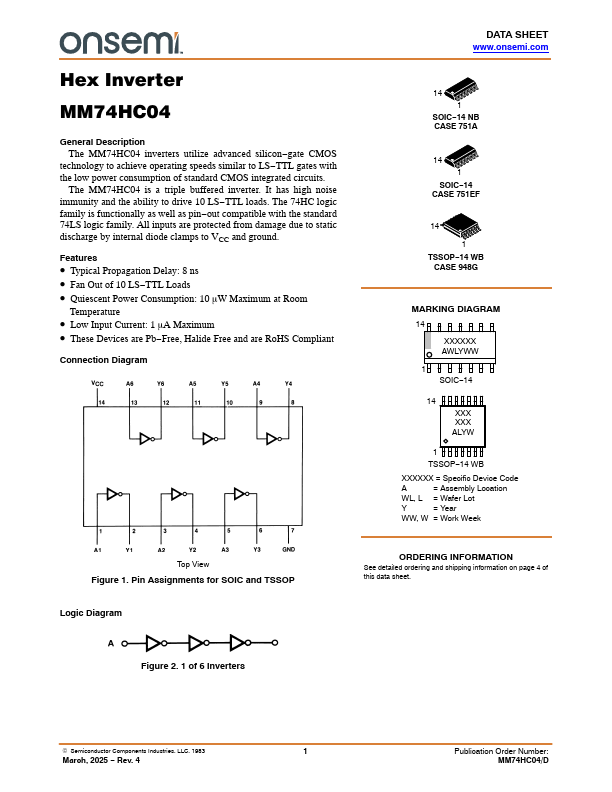

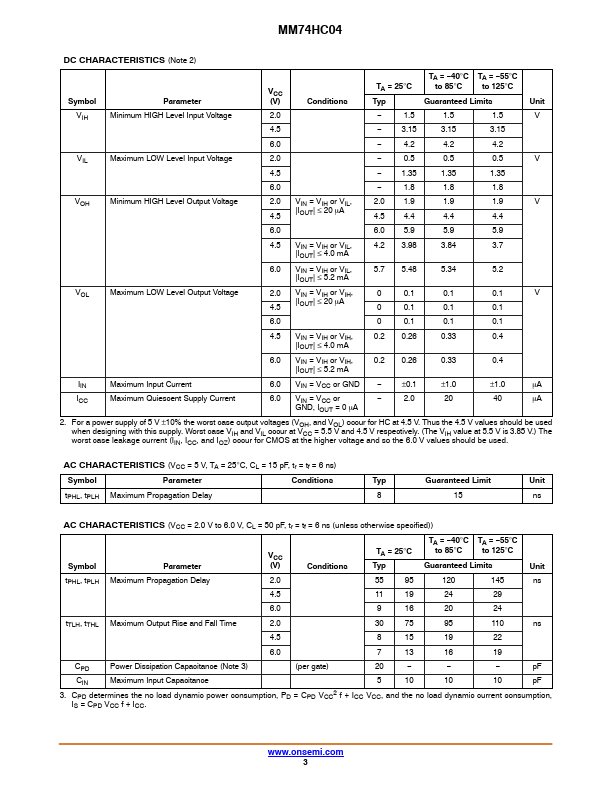

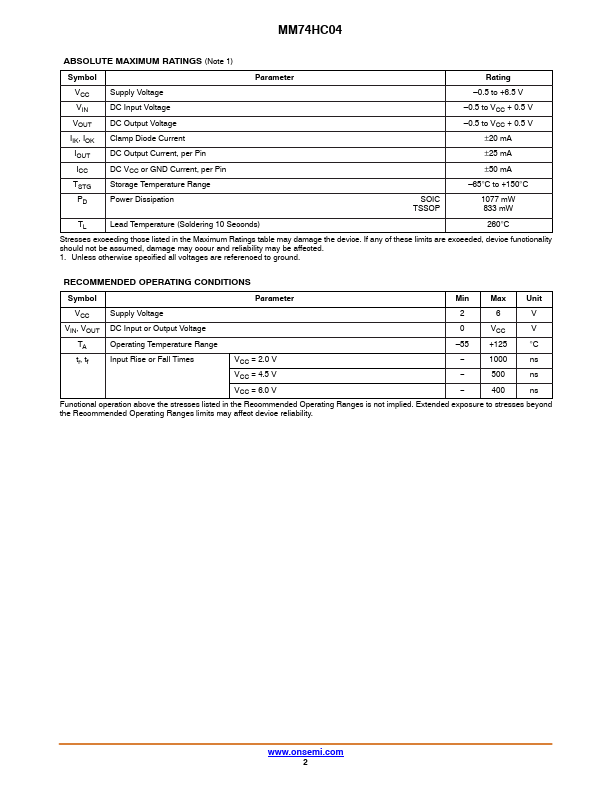

Hex Inverter MM74HC04 General Description The MM74HC04 inverters utilize advanced silicon−gate CMOS technology to achieve operating speeds similar to LS−TTL gates with the low power consumption of standard CMOS integrated circuits. The MM74HC04 is a triple buffered inverter. It has high noise immunity and the ability to drive 10 LS−TTL loads. The 74HC logic family is functionally as well as pin−out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.
