MMBF0201NL - N-Channel MOSFET

Key Features

  • Low RDS(on) Provides Higher Efficiency and Extends Battery Life.
  • Miniature SOT.
  • 23 Surface Mount Package Saves Board Space.
  • MVMBF Prefix for Automotive and Other.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMBF0201NLT1 TMOS Single N-Channel FET Motorola
MMBF0201N N-CHANNEL ENHANCEMENT-MODE TMOS MOSFET Motorola
MMBF0201 N-CHANNEL ENHANCEMENT-MODE TMOS MOSFET Motorola
MMBF0202PLT1 P-CHANNEL ENHANCEMENT-MODE TMOS MOSFET Motorola
MMBF170 N-Channel MOSFET Diodes Incorporated

Other Datasheets by onsemi

Part Number Description
MMBF0201NLT1 Power MOSFET
MMBF0201NLT1G Power MOSFET
MMBF0202PLT1 Power MOSFET
MMBF170 N-channel MOSFET
MMBF170L N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

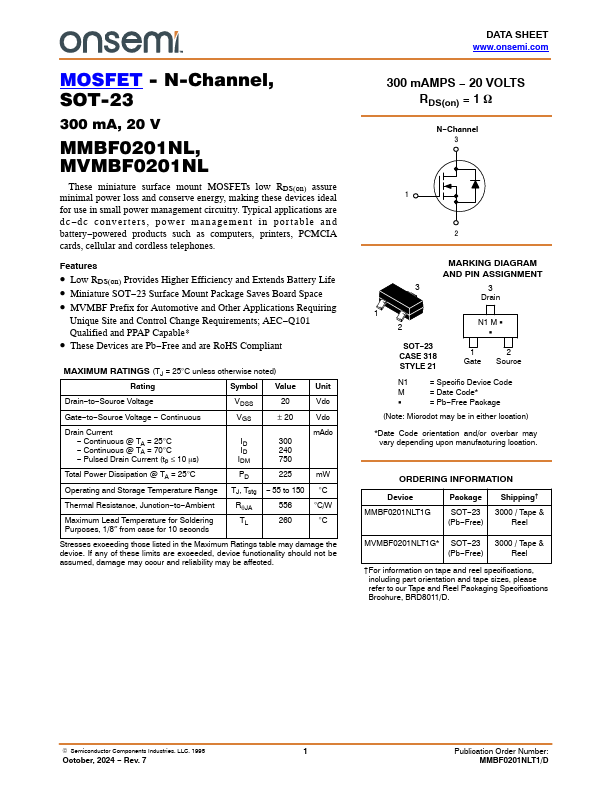

MMBF0201NL, MVMBF0201NL MOSFET – N-Channel, SOT-23 300 mA, 20 V These miniature surface mount MOSFETs low RDS(on) assure minimal power loss and conserve energy, making these devices ideal for use in small power management circuitry. Typical applications are dc−dc converters, power management in portable and battery−powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones.
