MMBV3401LT1G - Silicon Pin Diode

Features

  • Rugged PIN Structure Coupled with Wirebond Construction for Optimum Reliability http://onsemi. com.
  • Low Capacitance.
  • 0.7 pF (Typ) at VR = 20 Vdc.
  • Very Low Series Resistance at 100 MHz.
  • These Devices are Pb.
  • Free, Halogen Free/BFR Free and are RoHS Compliant 0.34 W (Typ) @ IF = 10 mAdc 3 Cathode 1 Anode 3 1.

📥 Download Datasheet

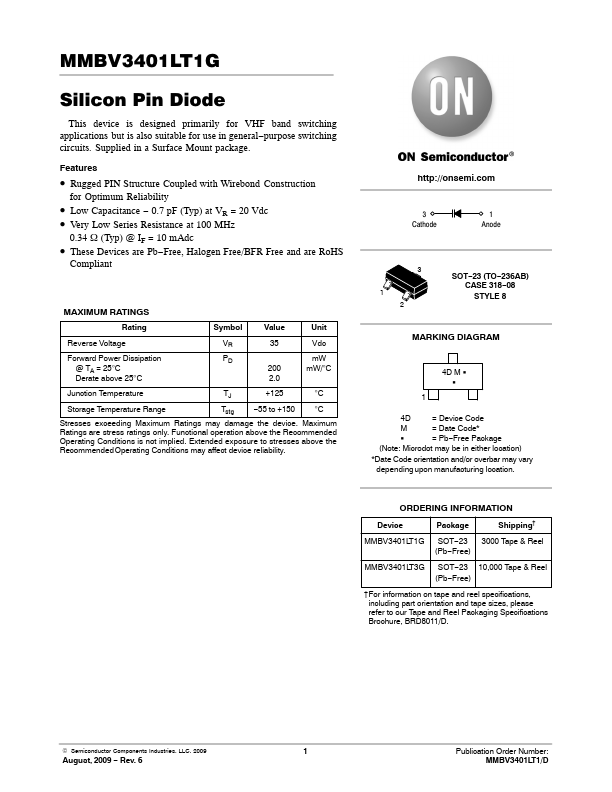

Datasheet preview – MMBV3401LT1G

Datasheet Details

Part number MMBV3401LT1G
Manufacturer ON Semiconductor
File Size 131.88 KB
Description Silicon Pin Diode
Datasheet download datasheet MMBV3401LT1G Datasheet

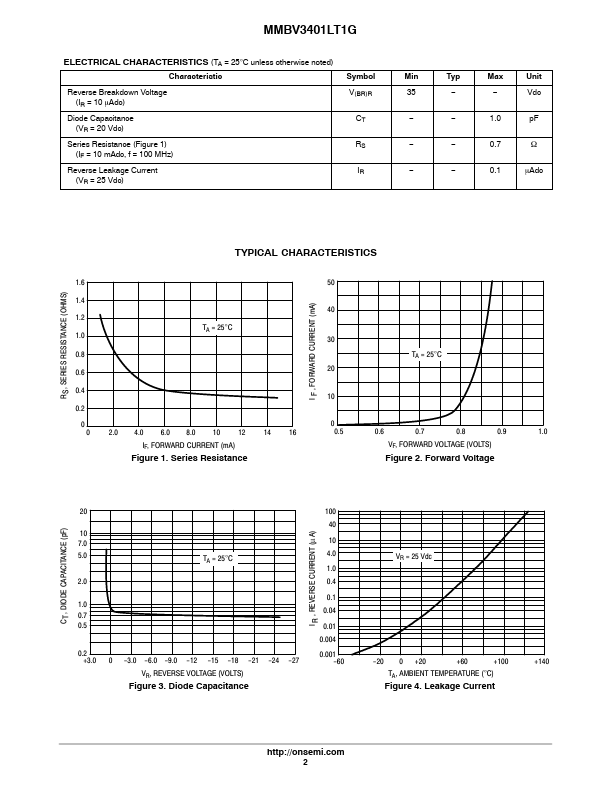

Additional preview pages of the MMBV3401LT1G datasheet.

📁 Similar Datasheet

  • MMBV3401LT1 - Silicon Pin Diode (Motorola)
  • MMBV3401LT1 - Silicon Ping Diode (Leshan Radio Company)
  • MMBV3401 - SURFACE MOUNT PIN DIODE (Pan Jit International)
  • MMBV3401 - General Purpose PIN Diode (Kexin)
  • MMBV3102LT1 - Silicon Tuning Diode (Motorola)
  • MMBV3102LT1 - Silicon Tuning Diode (Leshan Radio Company)
  • MMBV3700LT1 - High Voltage Silicon Pin Diodes (Motorola)
  • MMBV3700LT1 - Silicon Pin Diode (Leshan Radio Company)
  • MMBV3700LT1 - High Voltage Silicon Pin Diodes (ON)
  • MMBV105G - VOLTAGE VARIABLE CAPACITANCE DIODE (Motorola)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com MMBV3401LT1G Silicon Pin Diode This device is designed primarily for VHF band switching applications but is also suitable for use in general−purpose switching circuits. Supplied in a Surface Mount package. Features • Rugged PIN Structure Coupled with Wirebond Construction for Optimum Reliability http://onsemi.com • Low Capacitance − 0.7 pF (Typ) at VR = 20 Vdc • Very Low Series Resistance at 100 MHz • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant 0.34 W (Typ) @ IF = 10 mAdc 3 Cathode 1 Anode 3 1 MAXIMUM RATINGS Rating Reverse Voltage Forward Power Dissipation @ TA = 25°C Derate above 25°C Junction Temperature Storage Temperature Range Symbol VR PD Value 35 200 2.
