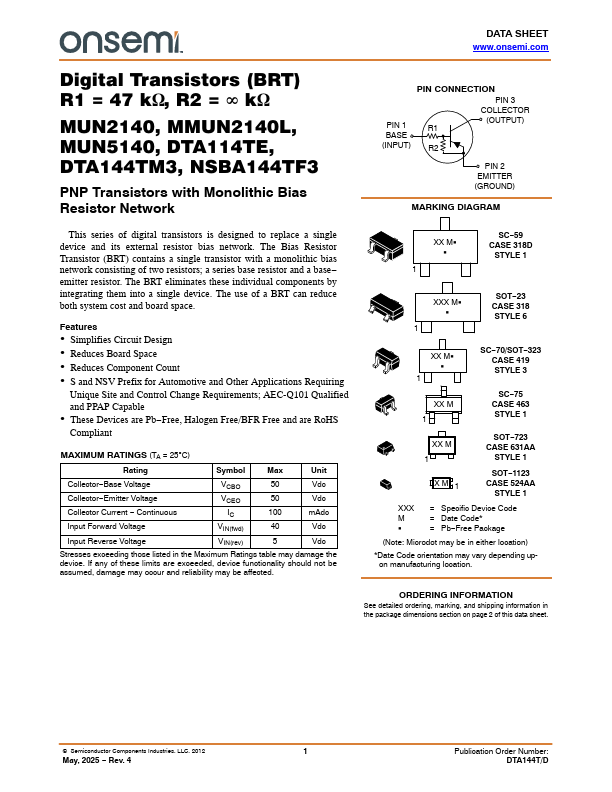

Overview: DATA SHEET .onsemi. Digital Transistors (BRT) R1 = 47 kW, R2 = 8 kW
MUN2140, MMUN2140L, MUN5140, DTA114TE, DTA144TM3, NSBA144TF3
PNP Transistors with Monolithic Bias Resistor Network PIN CONNECTION PIN 1 R1 BASE PIN 3 COLLECTOR
(OUTPUT) (INPUT) R2 PIN 2 EMITTER (GROUND) MARKING DIAGRAM This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base− emitter resistor. The BRT eliminates these individual ponents by integrating them into a single device. The use of a BRT can reduce both system cost and board space.
