NCP1011 - Self-Supplied Monolithic Switcher

Product Overview

ON Semiconductor

Datasheet Details

Part number	NCP1011
Manufacturer	ON Semiconductor
File Size	792.12 KB
Description	Self-Supplied Monolithic Switcher
Datasheet	NCP1011 Datasheet
Note	This datasheet PDF includes multiple part numbers: NCP1011, NCP1010. Please refer to the document for exact specifications by model.
Additional preview pages of the NCP1011 datasheet.

Product details

Description

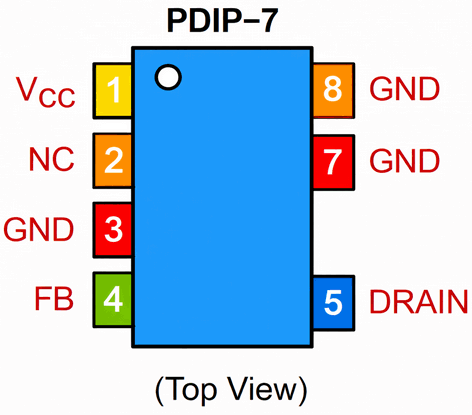

Pin No.

7) Pin Name 1 1 VCC 2 NC 3 GND 2 4 FB 3 5 Drain 7 GND 4 8 GND Function Powers the Internal Circuitry The IC Ground Feedback Signal Input Drain Connection

Features

Built.
in 700 V MOSFET with Typical RDSon of 11 W and 22 W.
Large Creepage Distance Between High.
Voltage Pins.
Current.
Mode Fixed Frequency Operation: 65 kHz.
100 kHz.
130 kHz.
Skip.
Cycle Operation at Low Peak Currents Only: No Acoustic Noise!.
Dynamic Self.
Supply, No Need for an Auxiliary Winding.
Internal 1.0 ms Soft.
Start.
Latched Overvoltage Protection with Auxilia.
