NCP1117 - 1.0A Low-Dropout Positive Fixed and Adjustable Voltage Regulators

Key Features

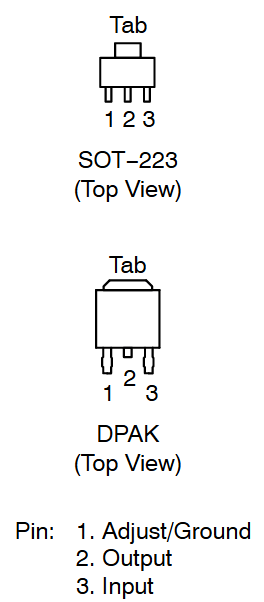

  • consist of output current limiting, safe operating area compensation, and thermal shutdown. The NCP1117 series can operate with up to 20 V input. Devices are available in SOT.
  • 223 and DPAK packages. Features.
  • Output Current in Excess of 1.0 A.
  • 1.2 V Maximum Dropout Voltage at 800 mA Over Temperature.
  • Fixed Output Voltages of 1.5 V, 1.8 V, 1.9 V, 2.0 V, 2.5 V, 2.85 V, 3.3 V, 5.0 V, and 12 V.
  • Adjustable Output Voltage Option.
  • No Minimum Load Requ.

📥 Download Datasheet

Datasheet Details

Part number NCP1117
Manufacturer onsemi
File Size 359.47 KB
Description 1.0A Low-Dropout Positive Fixed and Adjustable Voltage Regulators
Datasheet download datasheet NCP1117 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NCP1030 Integrated DC-DC Converter ON
NCP1031 Integrated DC-DC Converter ON
NCP1086 1.5A Adjustable and 3.3V Fixed Output Linear Regulator ON
NCP1212 Current Mode PWM Controller ON
NCP1215 Low Cost Variable OFF Time Switched Mode Power Supply Controller ON

Other Datasheets by onsemi

Part Number Description
NCP1117I 1.0A Low-Dropout Positive Fixed and Adjustable Voltage Regulators
NCP1117LP 1.0 A Low-Dropout Positive Fixed and Adjustable Voltage Regulators
NCP110 Low Noise and High PSRR Linear Regulator
NCP112 Supervisory-IC
NCP1124 High-Voltage Switcher

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
1.0 A Low-Dropout Positive Fixed and Adjustable Voltage Regulators NCP1117, NCP1117I, NCV1117 The NCP1117 series are low dropout positive voltage regulators that are capable of providing an output current that is in excess of 1.0 A with a maximum dropout voltage of 1.2 V at 800 mA over temperature. This series contains nine fixed output voltages of 1.5 V, 1.8 V, 1.9 V, 2.0 V, 2.5 V, 2.85 V, 3.3 V, 5.0 V, and 12 V that have no minimum load requirement to maintain regulation. Also included is an adjustable output version that can be programmed from 1.25 V to 18.8 V with two external resistors. On chip trimming adjusts the reference/output voltage to within ±1.0% accuracy. Internal protection features consist of output current limiting, safe operating area compensation, and thermal shutdown.
