NCP4306 - Secondary Side Synchronous Rectification Driver

Datasheet Summary

Description

of the naming convention used for image sensors.

For reference documentation, including information on evaluation kits, please visit our web site at www.onsemi.com.

Features

  • Self.
  • Contained Control of Synchronous Rectifier in CCM, DCM and QR for Flyback or LLC.

📥 Download Datasheet

Datasheet preview – NCP4306

Datasheet Details

Part number NCP4306
Manufacturer ON Semiconductor
File Size 1.17 MB
Description Secondary Side Synchronous Rectification Driver
Datasheet download datasheet NCP4306 Datasheet
Additional preview pages of the NCP4306 datasheet.

📁 Similar Datasheet

Other Datasheets by ON Semiconductor
  • NCP4300A - Dual Operational Amplifier and Voltage Reference
  • NCP4302 - Synchronous Rectification Controller
  • NCP4303A - Secondary Side Synchronous Rectification Driver
  • NCP4303B - Secondary Side Synchronous Rectification Driver
  • NCP4304A - Secondary Side Synchronous Rectification Driver
  • NCP4304B - Secondary Side Synchronous Rectification Driver
  • NCP4305 - Secondary Side Synchronous Rectification Driver
  • NCP4307 - Secondary Side Synchronous Rectification Driver

Full PDF Text Transcription

Click to expand full text

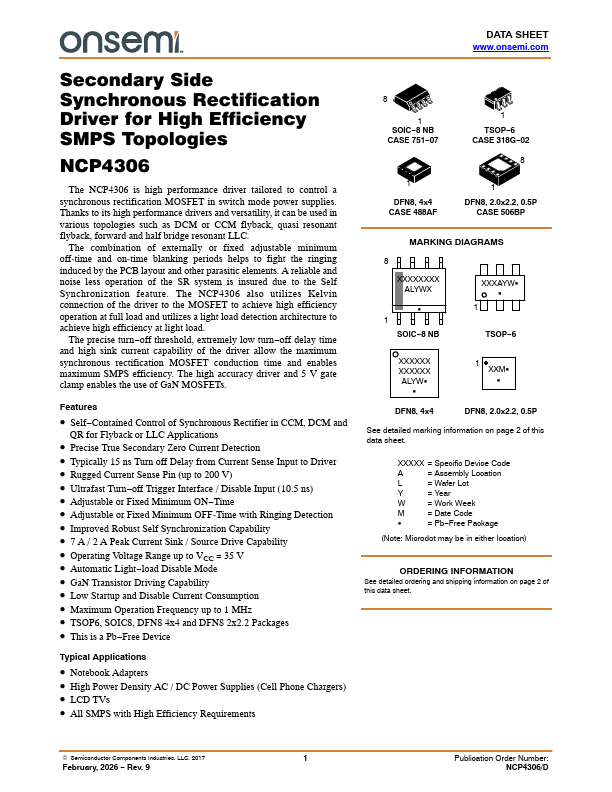

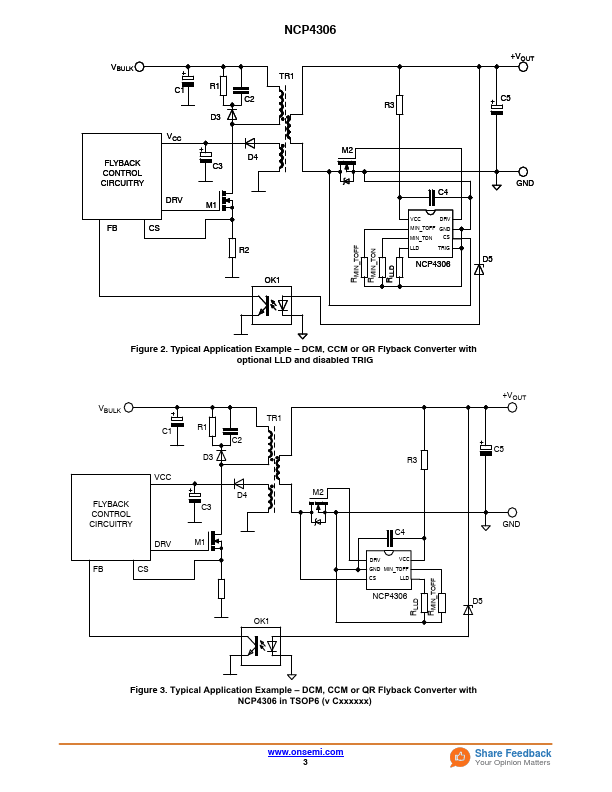

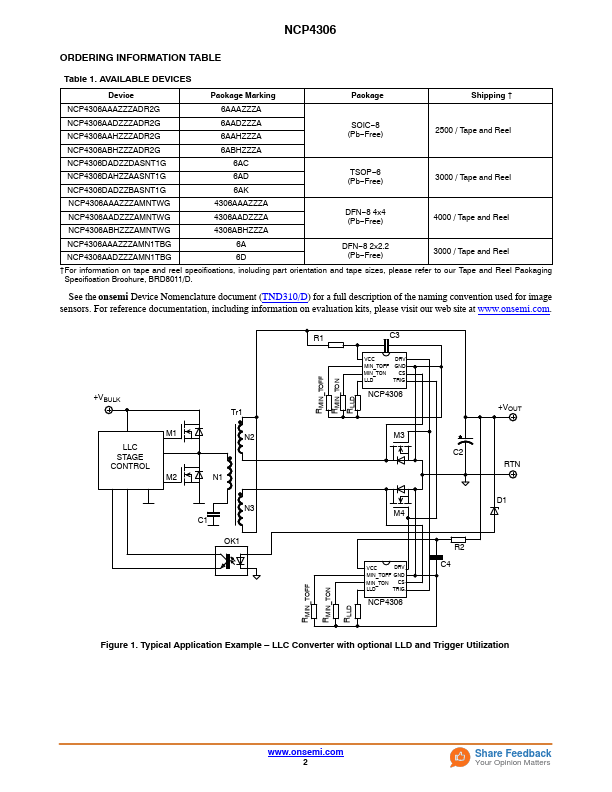

DATA SHEET www.onsemi.com Secondary Side Synchronous Rectification Driver for High Efficiency SMPS Topologies NCP4306 The NCP4306 is high performance driver tailored to control a synchronous rectification MOSFET in switch mode power supplies. Thanks to its high performance drivers and versatility, it can be used in various topologies such as DCM or CCM flyback, quasi resonant flyback, forward and half bridge resonant LLC. The combination of externally or fixed adjustable minimum off-time and on-time blanking periods helps to fight the ringing induced by the PCB layout and other parasitic elements. A reliable and noise less operation of the SR system is insured due to the Self Synchronization feature.
