NCS20071 Datasheet 3 MHz BW Operational Amplifier

Manufacturer: onsemi

📥 Download Datasheet

Datasheet Details

Part number NCS20071
Manufacturer onsemi
File Size 916.91 KB
Description 3 MHz BW Operational Amplifier
Datasheet download datasheet NCS20071 Datasheet

Overview

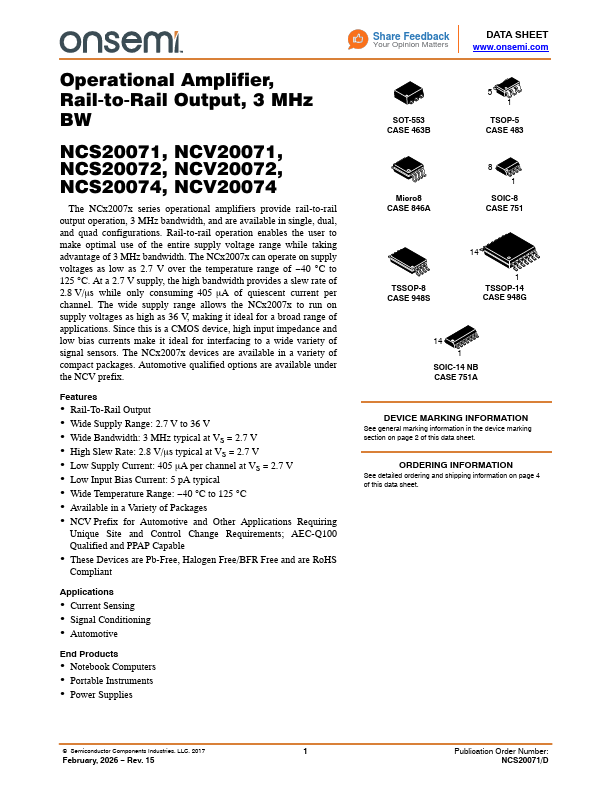

NCS20071, NCS20072, NCS20074 Rail-to-Rail Output, 3 MHz BW Operational Amplifier The NCS2007 series operational amplifiers provide rail−to−rail output operation, 3 MHz bandwidth, and are available in single, dual, and quad configurations.

Rail−to−rail operation enables the user to make optimal use of the entire supply voltage range while taking advantage of 3 MHz bandwidth.

The NCS2007 can operate on supply voltages as low as 2.7 V over the temperature range of −40°C to 125°C.

Key Features

  • http://onsemi. com 5 1 SOT.
  • 553 CASE 463B TSOP.
  • 5 CASE 483 8 1 Micro8] CASE 846AH SOIC.
  • 8 CASE 751 8 1 TSSOP.
  • 8 CASE 948S UDFN8 CASE 517AC.
  • Rail.
  • To.
  • Rail Output Wide Supply Range: 2.7 V to 36 V Wide Bandwidth: 3 MHz typical at VS = 2.7 V High Slew Rate: 2.8 V/ms typical at VS = 2.7 V Low Supply Current: 405 mA per channel at VS = 2.7 V Low Input Bias Cu.
