NJT4030P - Bipolar PNP Silicon Power Transistors

Features

  • Epoxy Meets UL 94, V.
  • 0 @ 0.125 in.
  • NJV Prefix for Automotive and Other.

📥 Download Datasheet

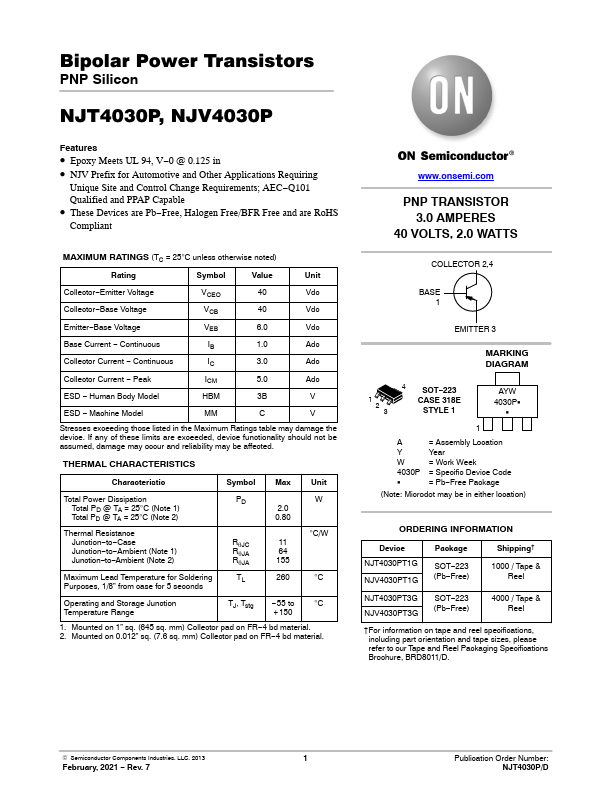

Datasheet preview – NJT4030P

Datasheet Details

Part number NJT4030P
Manufacturer ON Semiconductor
File Size 184.41 KB
Description Bipolar PNP Silicon Power Transistors
Datasheet download datasheet NJT4030P Datasheet

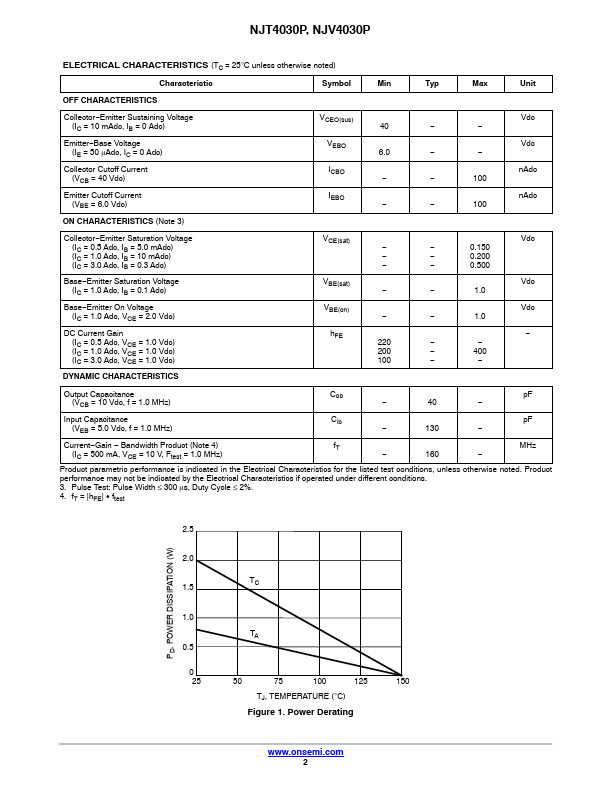

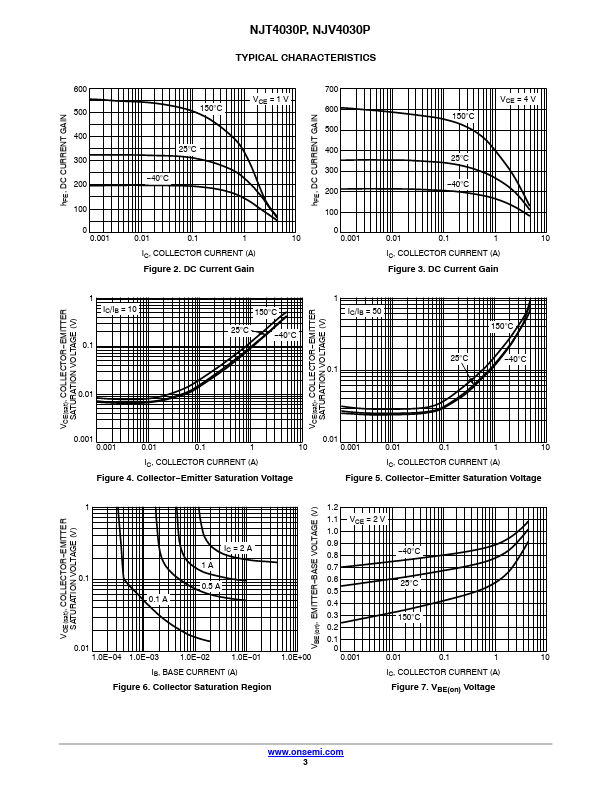

Additional preview pages of the NJT4030P datasheet.

📁 Similar Datasheet

  • NJT1946A - X-band Radar Front End (Nisshinbo)
  • NJT5667 - C-band 2W BUC (Nisshinbo)
  • NJT5668 - C-band 2W BUC (Nisshinbo)
  • NJT5674 - C-band 2W BUC (Nisshinbo)
  • NJT8319 - Ku-band 16W BUC (Nisshinbo)
  • NJT8334 - Ku-band GaN 8W BUC (Nisshinbo)
  • NJT8336 - Ku-band GaN 16W BUC (Nisshinbo)
Other Datasheets by ON Semiconductor

    Full PDF Text Transcription

    Click to expand full text
    Bipolar Power Transistors PNP Silicon NJT4030P, NJV4030P Features • Epoxy Meets UL 94, V−0 @ 0.125 in • NJV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (TC = 25°C unless otherwise noted) Rating Symbol Value Unit Collector−Emitter Voltage VCEO 40 Vdc Collector−Base Voltage VCB 40 Vdc Emitter−Base Voltage VEB 6.0 Vdc Base Current − Continuous IB 1.0 Adc Collector Current − Continuous IC 3.0 Adc Collector Current − Peak ICM 5.0 Adc ESD − Human Body Model HBM 3B V ESD − Machine Model MM C V Stresses exceeding those listed in the Maximum Ratings table may damage the device.
