NJV4030P - Bipolar Power Transistors

Datasheet Summary

Features

Epoxy Meets UL 94, V.
0 @ 0.125 in.
NJV Prefix for Automotive and Other.

ON Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	NJV4030P
Manufacturer	ON Semiconductor
File Size	175.25 KB
Description	Bipolar Power Transistors
Datasheet	NJV4030P Datasheet

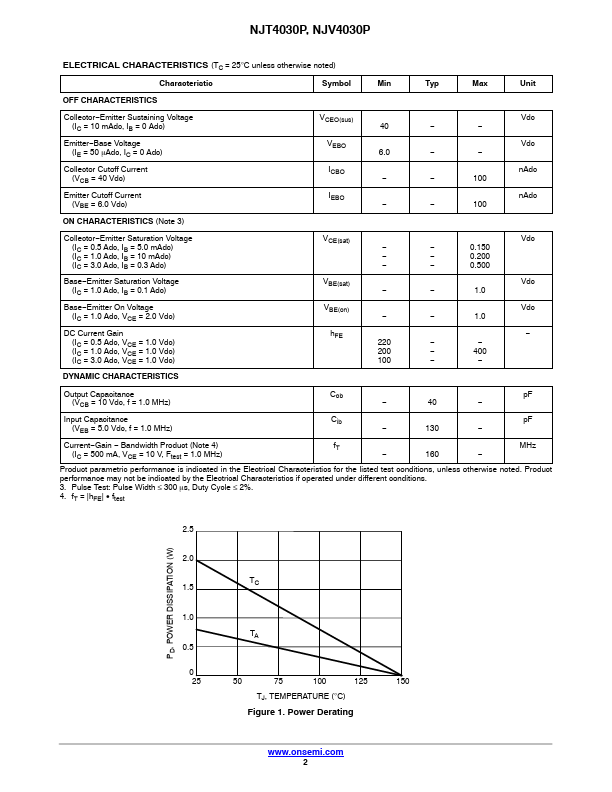

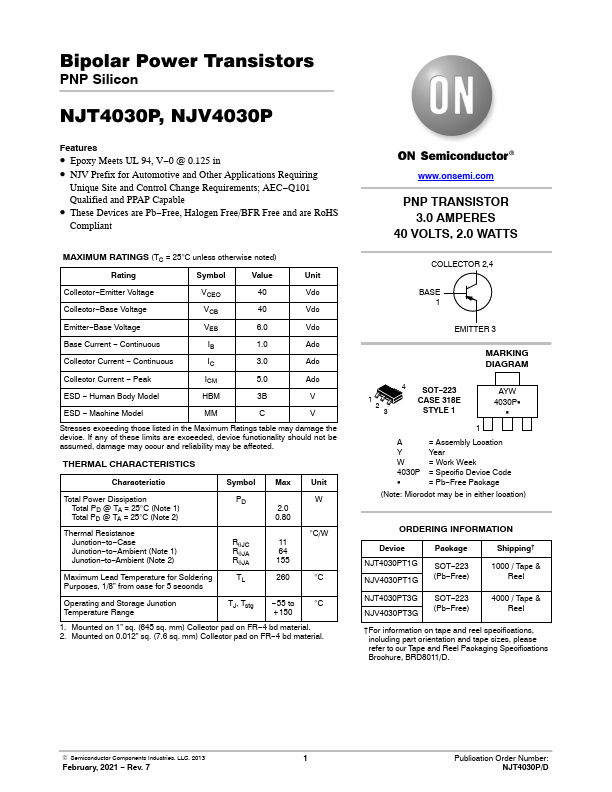

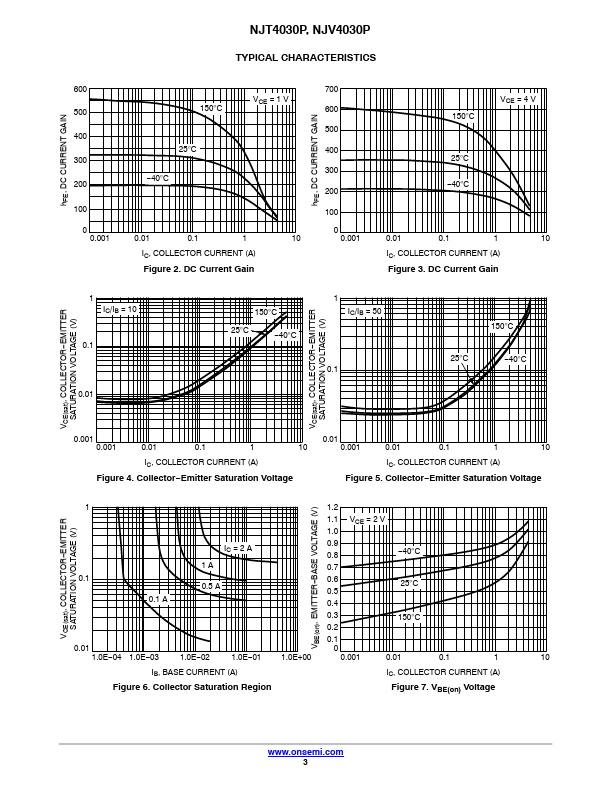

Additional preview pages of the NJV4030P datasheet.

📁 Similar Datasheet

Other Datasheets by ON Semiconductor

NJVMJB41CT4G - Complementary Silicon Plastic Power Transistors
NJVMJB42CT4G - Complementary Silicon Plastic Power Transistors
NJVMJB44H11 - NPN Transistor
NJVMJB45H11 - PNP Transistor
NJVMJD122 - Complementary Darlington Power Transistor
NJVMJD127 - Complementary Darlington Power Transistor
NJVMJD2955T4G - Complementary Power Transistors
NJVMJD3055T4G - Complementary Power Transistors

Full PDF Text Transcription

Click to expand full text

Bipolar Power Transistors PNP Silicon NJT4030P, NJV4030P Features • Epoxy Meets UL 94, V−0 @ 0.125 in • NJV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (TC = 25°C unless otherwise noted) Rating Symbol Value Unit Collector−Emitter Voltage VCEO 40 Vdc Collector−Base Voltage VCB 40 Vdc Emitter−Base Voltage VEB 6.0 Vdc Base Current − Continuous IB 1.0 Adc Collector Current − Continuous IC 3.0 Adc Collector Current − Peak ICM 5.0 Adc ESD − Human Body Model HBM 3B V ESD − Machine Model MM C V Stresses exceeding those listed in the Maximum Ratings table may damage the device.
