NL17SZ00 Overview

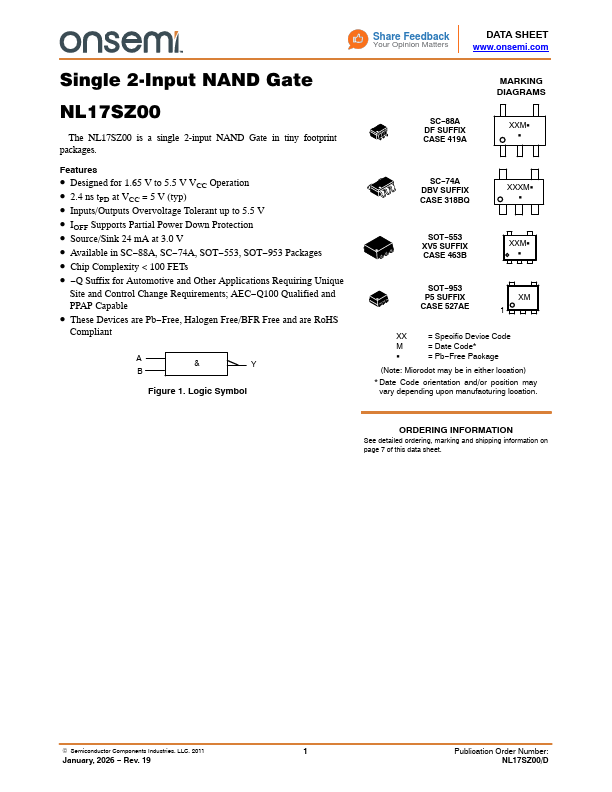

Single 2-Input NAND Gate NL17SZ00 The NL17SZ00 is a single 2−input NAND Gate in tiny footprint packages. • Chip plexity < 100 FETs • −Q Suffix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS IIK IOK IOUT ICC or IGND TSTG TL TJ qJA DC Supply Voltage DC Input Voltage DC Output Voltage Active−Mode (High or Low State) Tri−State Mode (Note 1) Power−Down Mode (VCC = 0 V) DC Input Diode Current DC Output Diode Current DC Output Source/Sink Current VIN < GND VOUT < GND DC Supply Current per Supply Pin or Ground Pin Storage Temperature Range Lead Temperature, 1 mm from Case for 10 secs Junction Temperature Under Bias
NL17SZ00 Key Features
- Designed for 1.65 V to 5.5 V VCC Operation
- 2.4 ns tPD at VCC = 5 V (typ)
- Inputs/Outputs Overvoltage Tolerant up to 5.5 V
- IOFF Supports Partial Power Down Protection
- Source/Sink 24 mA at 3.0 V
- Available in SC-88A, SC-74A, SOT-553, SOT-953 and UDFN6
- Chip plexity < 100 FETs
- Q Suffix for Automotive and Other
