NL27WZ08 - Dual 2-Input AND Gate

onsemi

Key Features

Designed for 1.65 V to 5.5 V VCC Operation.
2.5 ns tPD at VCC = 5 V (typ).
Inputs/Outputs Overvoltage Tolerant up to 5.5 V.
IOFF Supports Partial Power Down Protection.
Source/Sink 24 mA at 3.0 V.
Available in US8, UDFN8 and UQFN8 Packages.
Chip Complexity < 100 FETs.
Q Suffix for Automotive and Other.

NL27WZ08 dual 2-input and gate by onsemi - Datasheet Preview

Datasheet Details

Part number	NL27WZ08
Manufacturer	onsemi
File Size	181.62 KB
Description	Dual 2-Input AND Gate
Datasheet	NL27WZ08 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
NL27WZ125	Dual Buffer with 3-State Outputs	ON
NL27WZ32	Dual 2-Input OR Gate	ON
NL270001P0	TFT LCD	SUNUL
NL2011T	Thermoelectric Module	MARLOW
NL2012T	Thermoelectric Module	MARLOW

Other Datasheets by onsemi

Part Number	Description
NL27WZ00	Dual 2-Input NAND Gate
NL27WZ02	Dual 2-Input NOR Gate
NL27WZ04	Dual Inverter
NL27WZ06	Dual Inverter
NL27WZ07	Dual Buffer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

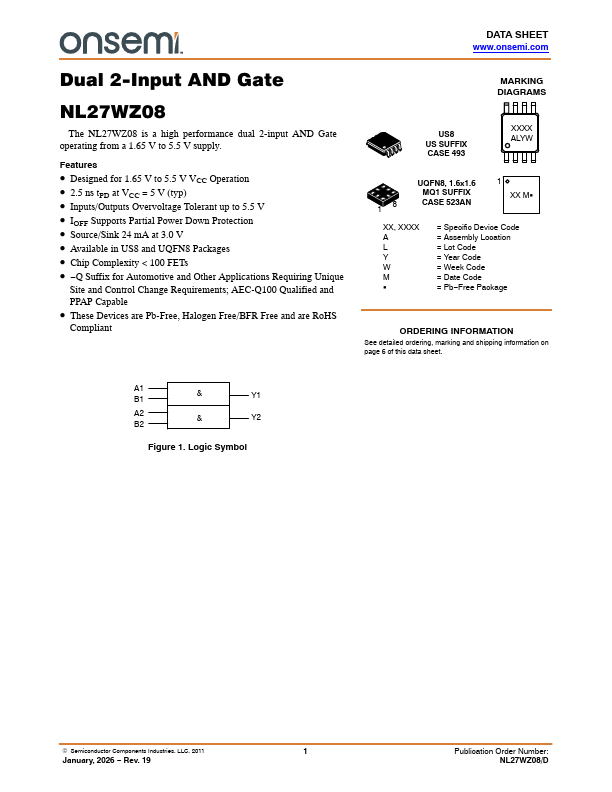

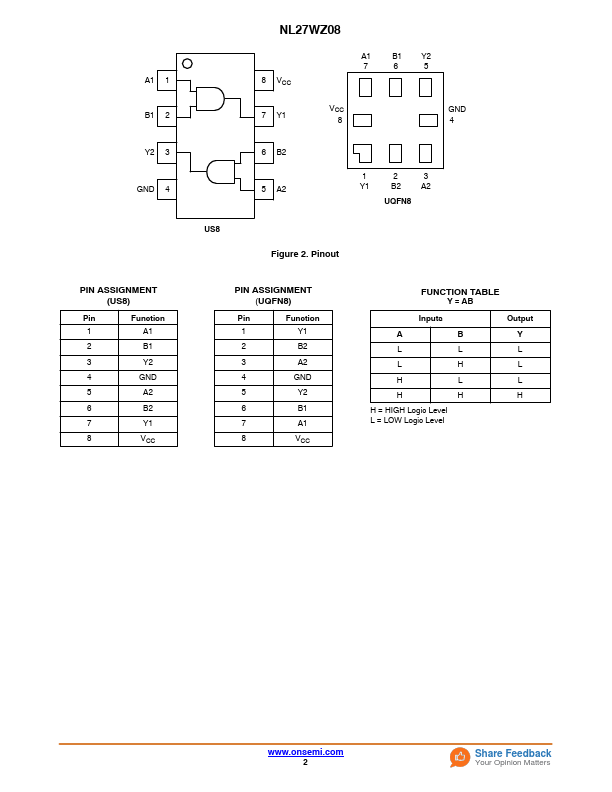

Dual 2-Input AND Gate NL27WZ08 The NL27WZ08 is a high performance dual 2−input AND Gate operating from a 1.65 V to 5.5 V supply. Features  Designed for 1.65 V to 5.5 V VCC Operation  2.5 ns tPD at VCC = 5 V (typ)  Inputs/Outputs Overvoltage Tolerant up to 5.5 V  IOFF Supports Partial Power Down Protection  Source/Sink 24 mA at 3.0 V  Available in US8, UDFN8 and UQFN8 Packages  Chip Complexity < 100 FETs  −Q Suffix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable  These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant A1 B1 & Y1 A2 B2 & Y2 Figure 1. Logic Symbol DATA SHEET www.onsemi.com MARKING DIAGRAMS US8 US SUFFIX CASE 493 XXXX ALYW UDFN8, 1.95x1.
