NOII4SM6600A - 6.6 Megapixel CMOS Image Sensor

Product Overview

ON Semiconductor

📥 Download Datasheet

NOII4SM6600A 6.6 Megapixel CMOS Image Sensor by ON Semiconductor - Datasheet Preview — Datasheet preview – NOII4SM6600A

Datasheet Details

Part number	NOII4SM6600A
Manufacturer	ON Semiconductor
File Size	941.24 KB
Description	6.6 Megapixel CMOS Image Sensor
Datasheet	NOII4SM6600A Datasheet

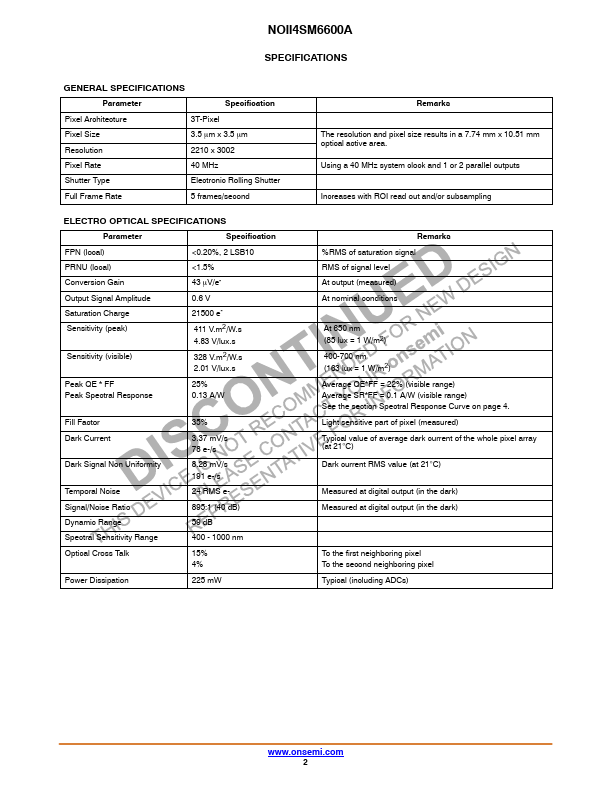

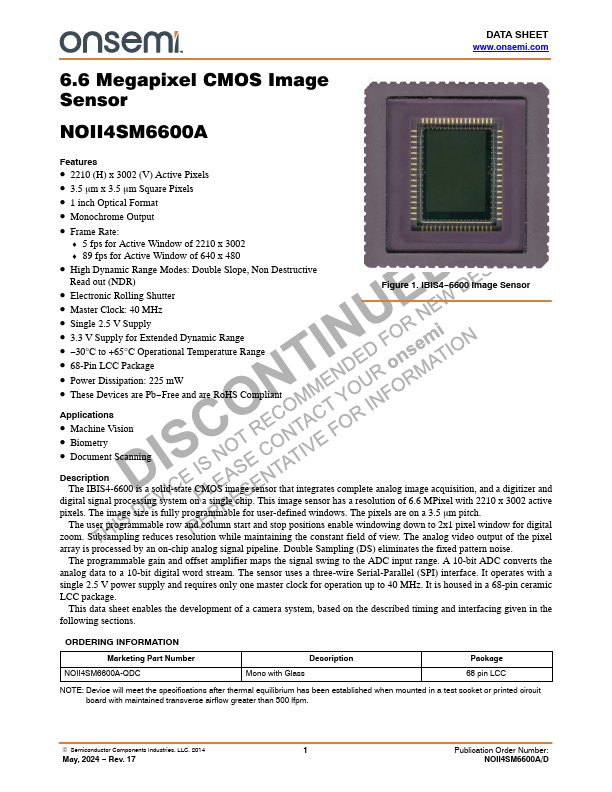

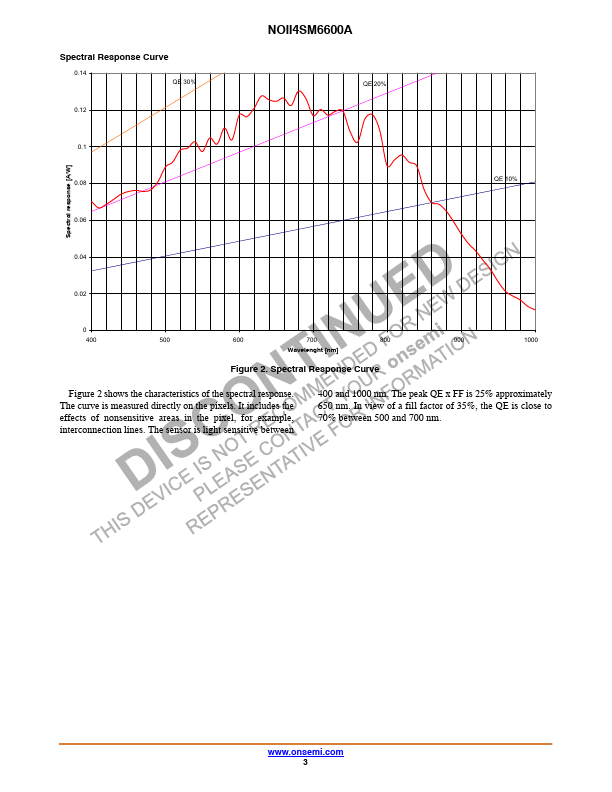

Additional preview pages of the NOII4SM6600A datasheet.

NOII4SM6600A Product details

Description

digital signal processing system on a single chip.

This image sensor has a resolution of 6.6 MPixel with 2210 x 3002 active pixels.

Features

2210 (H) x 3002 (V) Active Pixels.
3.5 mm x 3.5 mm Square Pixels.
1 inch Optical Format.
Monochrome Output.
Frame Rate:.
5 fps for Active Window of 2210 x 3002.
89 fps for Active Window of 640 x 480.
High Dynamic Range Modes: Double Slope, Non Destructive Read out (NDR).
Electronic Rolling Shutter.
Master Clock: 40 MHz.
Single 2.5 V Supply.
3.3 V Supply for Extended Dynamic Range.
