NSBA123JF3 Datasheet Digital Transistors

Manufacturer: onsemi

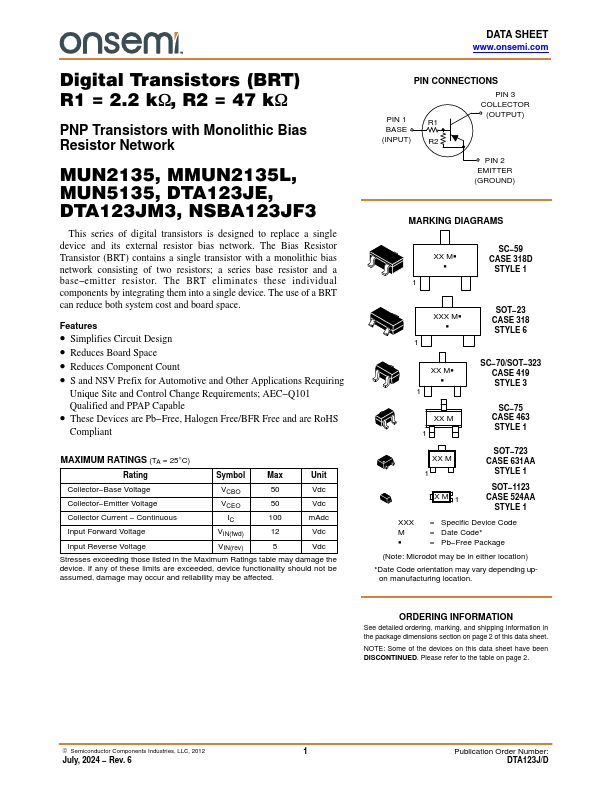

Overview: Digital Transistors (BRT) R1 = 2.2 kW, R2 = 47 kW PNP Transistors with Monolithic Bias Resistor Network MUN2135, MMUN2135L, MUN5135, DTA123JE, DTA123JM3, NSBA123JF3 This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base−emitter resistor. The BRT eliminates these individual ponents by integrating them into a single device. The use of a BRT can reduce both system cost and board space.

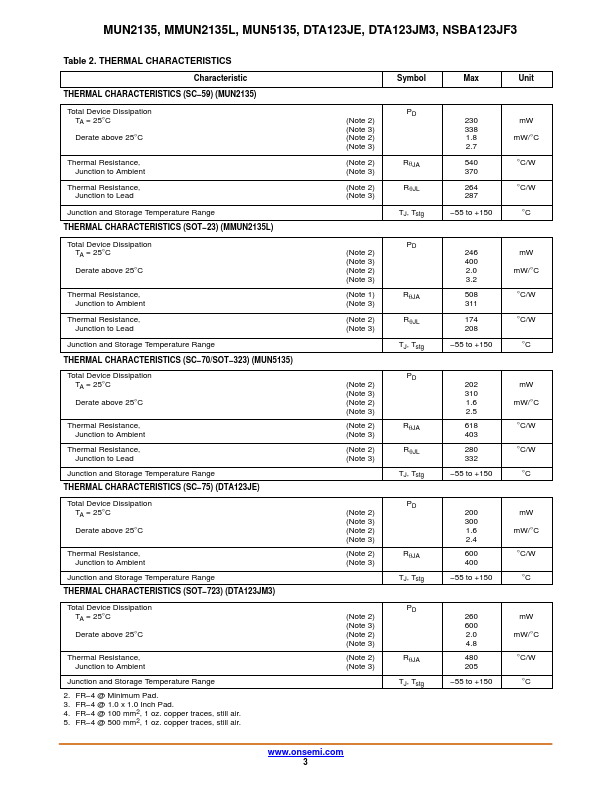

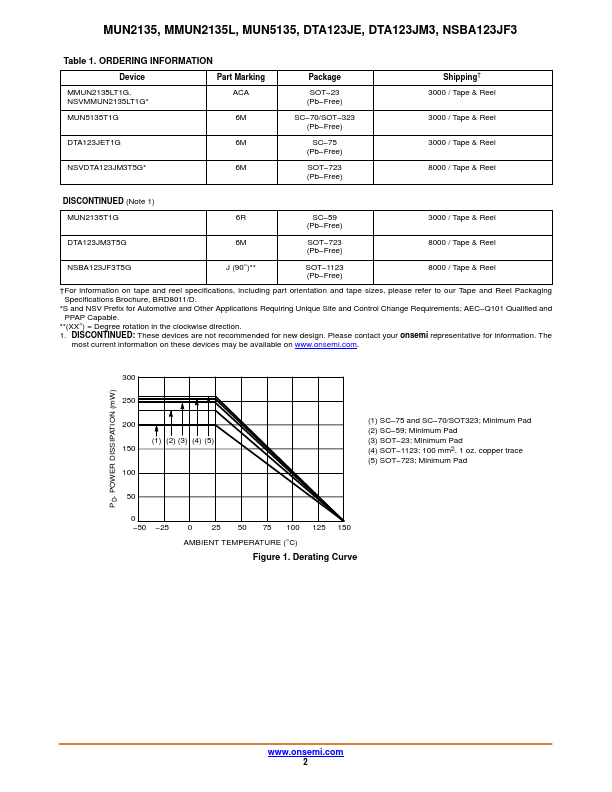

Key Features

  • Simplifies Circuit Design.
  • Reduces Board Space.
  • Reduces Component Count.
  • S and NSV Prefix for Automotive and Other.
