NSBA144TF3
NSBA144TF3 is manufactured by onsemi.

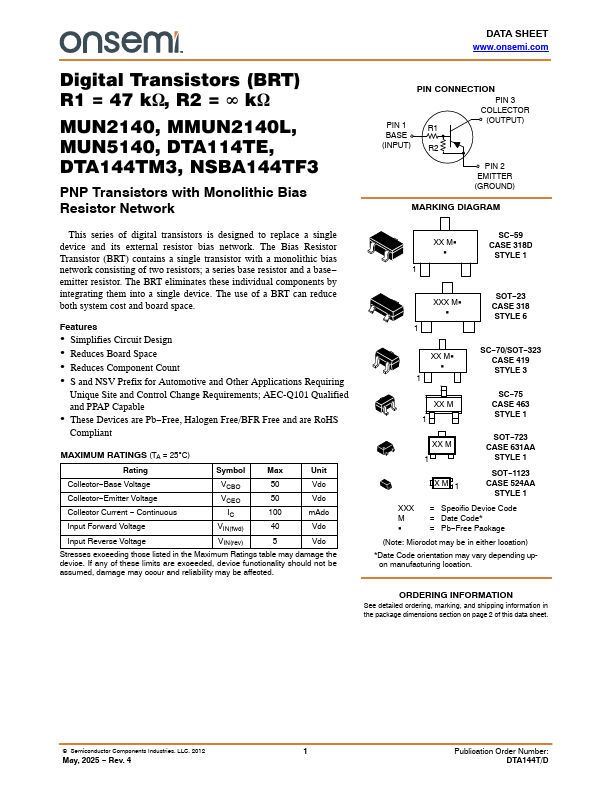

DATA SHEET .onsemi.
Digital Transistors (BRT) R1 = 47 kW, R2 = 8 kW
MUN2140, MMUN2140L, MUN5140, DTA114TE, DTA144TM3, NSBA144TF3
PNP Transistors with Monolithic Bias Resistor Network
PIN CONNECTION
PIN 1
R1
BASE
PIN 3 COLLECTOR
(OUTPUT)
(INPUT) R2
PIN 2 EMITTER (GROUND)
MARKING DIAGRAM
This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base- emitter resistor. The BRT eliminates these individual ponents by integrating them into a single device. The use of a...
