NSP4201MR6 - Low Clamping Voltage Surge Protection Diode Array

Datasheet Summary

Description

of survivability specs.

6 CASE 318G MARKING DIAGRAM 42 MG G 42 = Specific Device Code M = Date Code G = Pb Free Package (Note: Microdot may be in either location)

Date Code orientation may vary depending upon manufacturing location.

Features

  • Protection for the Following IEC Standards: IEC 61000.
  • 4.
  • 2 (ESD) ±30 kV (Contact) IEC 61000.
  • 4.
  • 5 (Lightning) 25 A (8/20 ms).
  • Low Clamping Voltage.
  • Low Leakage.
  • UL Flammability Rating of 94 V.
  • SZ Prefix for Automotive and Other.

📥 Download Datasheet

Datasheet preview – NSP4201MR6

Datasheet Details

Part number NSP4201MR6
Manufacturer ON Semiconductor
File Size 346.62 KB
Description Low Clamping Voltage Surge Protection Diode Array
Datasheet download datasheet NSP4201MR6 Datasheet

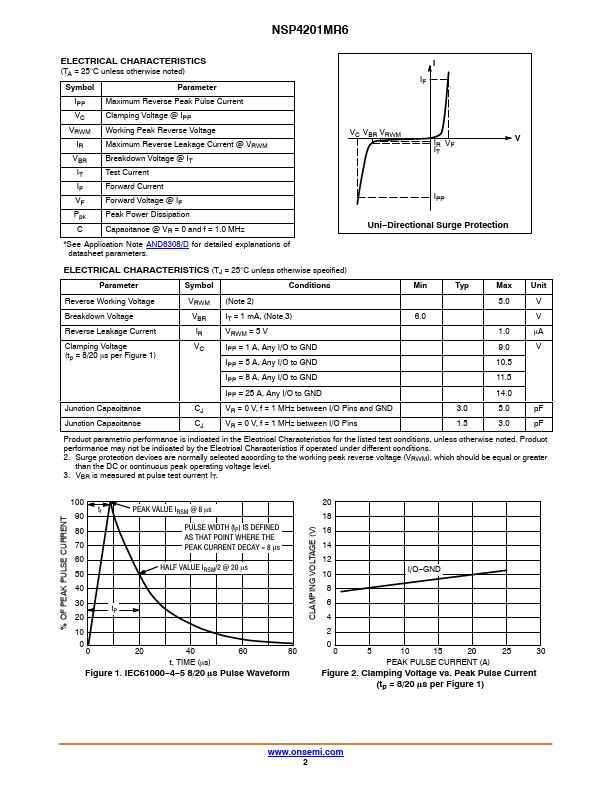

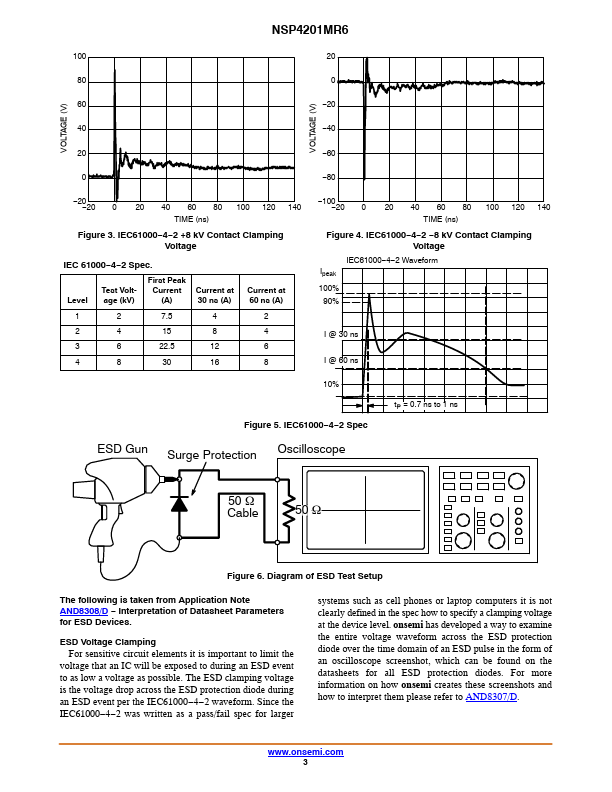

Additional preview pages of the NSP4201MR6 datasheet.

📁 Similar Datasheet

  • NSP470M6.3D2TR - Surface Mount Specialty Polymer Solid Aluminum Electrolytic Capacitors (NIC-Components)
  • NSP470M6.3D2XTR - Surface Mount Specialty Polymer Solid Aluminum Electrolytic Capacitors (NIC-Components)
  • NSP471M2D4TR - Surface Mount Specialty Polymer Solid Aluminum Electrolytic Capacitors (NIC-Components)
  • NSP471M2D4ZTR - Surface Mount Specialty Polymer Solid Aluminum Electrolytic Capacitors (NIC-Components)
  • NSP481A - 1-ch Voice IC (nuvoton)
  • NSP040A - 1-ch Voice IC (nuvoton)
  • NSP082A - 1-ch Voice IC (nuvoton)
  • NSP100M6.3D2TR - Surface Mount Specialty Polymer Solid Aluminum Electrolytic Capacitors (NIC-Components)
  • NSP101M2.5D2TR - Surface Mount Specialty Polymer Solid Aluminum Electrolytic Capacitors (NIC-Components)
  • NSP101M2.5D2XTR - Surface Mount Specialty Polymer Solid Aluminum Electrolytic Capacitors (NIC-Components)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
DATA SHEET www.onsemi.com ESD and Surge Protection Device Low Clamping Voltage Surge Protection Diode Array NSP4201MR6 The NSP4201MR6 surge protector is designed to protect high speed data lines from ESD, EFT, and lightning surges. Features • Protection for the Following IEC Standards: IEC 61000−4−2 (ESD) ±30 kV (Contact) IEC 61000−4−5 (Lightning) 25 A (8/20 ms) • Low Clamping Voltage • Low Leakage • UL Flammability Rating of 94 V−0 • SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant Typical Applications • High Speed Communication Line Protection • USB 1.1 and 2.
