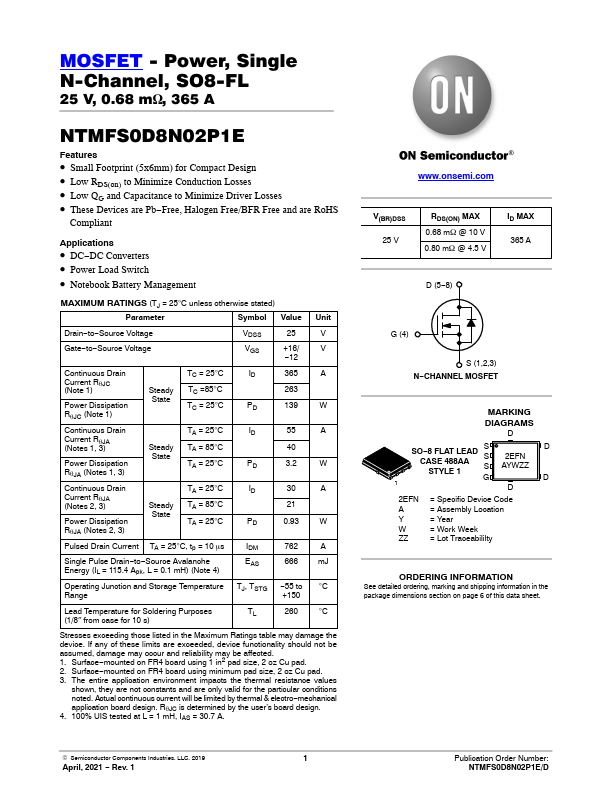

NTMFS0D8N02P1E
NTMFS0D8N02P1E is N-Channel Power MOSFET manufactured by onsemi.
Features
- Small Footprint (5x6mm) for pact Design
- Low RDS(on) to Minimize Conduction Losses
- Low QG and Capacitance to Minimize Driver Losses
- These Devices are Pb- Free, Halogen Free/BFR Free and are Ro HS pliant
Applications
- DC- DC Converters
- Power Load Switch
- Notebook Battery Management
MAXIMUM RATINGS (TJ = 25°C unless otherwise stated)
Parameter
Symbol Value Unit
Drain- to- Source Voltage Gate- to- Source Voltage
VDSS
+16/
- 12
Continuous Drain
TC = 25°C
Current Rq JC (Note 1)
Steady TC =85°C
State
Power Dissipation
TC = 25°C
Rq JC (Note 1)
Continuous Drain
TA = 25°C
Current Rq JA (Notes 1, 3)
Steady TA = 85°C
State
Power Dissipation
TA = 25°C
Rq JA (Notes 1,...
